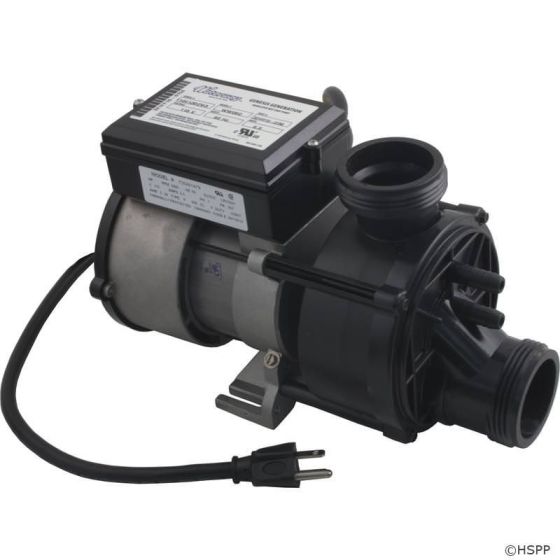

Waterway 321FF10-1150 Genesis Generation Energy Efficient Bath Pump - 5.5A - 115V - Air Switch


  • Waterway part number 321FF10-1150
  • Replaces Magna LD5A-C
  • Center Discharge
  • 1-1/2" intake and discharge
  • 3' NEMA power cord
  • Air switch
  • Single Speed, 3450 RPM, 60 hz
  • Dimensions: (H x W x L) 7.10" x 5.125" x 10.78"
More Information
Delivery Time 2-5 Business Days
Manufacturer Waterway
Technical Specs
Complete Pump Type Bath Pump
Speed 1 Speed (1-Spd)
Motor Voltage 115v
Drain Plug Location None
Suction Auxiliary Port 3/8" barb (b) 1ea
Suction Style Bottom
Suction Connection (Physical Dimension) 2-7/16" od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 1-1/2"
Discharge Auxiliary Port 3/8" barb (b) 1ea
Discharge Style Center
Discharge Connection (Physical Dimension) 2-7/16" od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 1-1/2"
Motor Amperage/Wattage 5.5A
Manufacturer Waterway
Pump Model Genesis
Volute Fastening Type 4 Bolts
SKU 321FF10-1150
Manufacturer Part # 321FF10-1150
Product Features

The Waterway 321FF10-1150 Genesis Bath Pump is an energy efficient 5.5 amp 115 Volt pump and includes a NEMA plug and Air Switch. There are two barbed fittings on the face of the pump for small lines, these come from the factory plugged. If needed, they can be drilled out easily.
