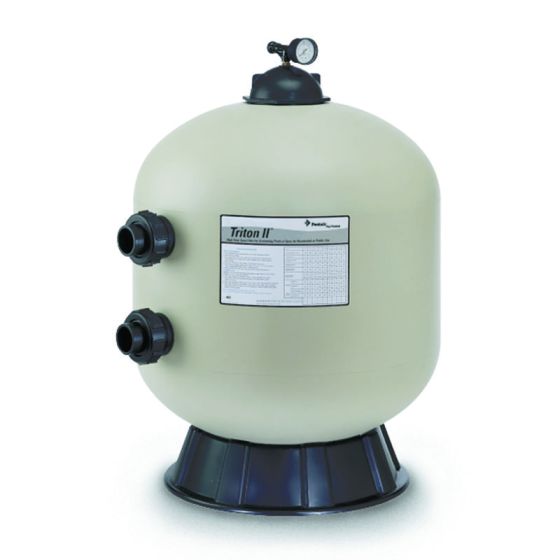

Pentair Triton II Side Mount TR60 In Ground Pool Sand Filter 140264 EC-140264

The Pentair Triton II TR60 Sand Filter has a 24 inch tank diameter and uses 325 lbs of sand. The Tiriton II is the best selling pool sand filter in the world as a result of almost 50 years of product evolution and refinement. Using proprietary ClearPro technology to remove particles that are five times smaller than what other sand filters can remove the Triton II makes pool water sparkle with clarity.

Triton II filters use a patented GlasLok process to create a one-piece, fiberglass reinforced tank with a UV resistant surface finish for years of unequaled strength and durability. This unique method locks in fiberglass preventing fibers from "blooming" under harsh conditions. The TR60 sand filter is a side mount filter and a side mount valve is required (not included).

More Information
Delivery Time 2-5 Business Days
Manufacturer Pentair
Technical Specs

Filter Area Sq. Ft: 3.14
Vertical Clearance: 37.5"
Filter Diameter: 24"
Sand Required: 325
Flow Rate: 63 GPM
Turnover 8 Hours: 30,240 Gallons
Turnover 12 Hours: 45,360 Gallons

Product Documentation
SKU PAC-05-0077
Manufacturer Part # EC-140264
Product Features
  • Pentair model TR60, 140264, EC-140264
  • 24 Inch Sand Filter
  • Requires 325 lbs sand (not included)
  • Ideal for large residential and commercial pools
  • Heavy-duty closure provides easy inspection
  • Easy-to-read pressure gauge with air relief valve
  • Swing-away diffuser for instant access to internal parts
  • All internal parts are threaded for ease of service
  • Internal air bleed
  • Threaded bulkhead connectors for easy installation
  • Combination sand and water drain makes servicing  easy
  • Side Mount valve required - Valve not included
  • 263064 - 2" Slide Valve
  • 261050 - 2" Hi-Flow Multiport Valve
  • 261055 - 2" Multiport Valve
  • 261173 - 1-1/2" Multiport Valve
