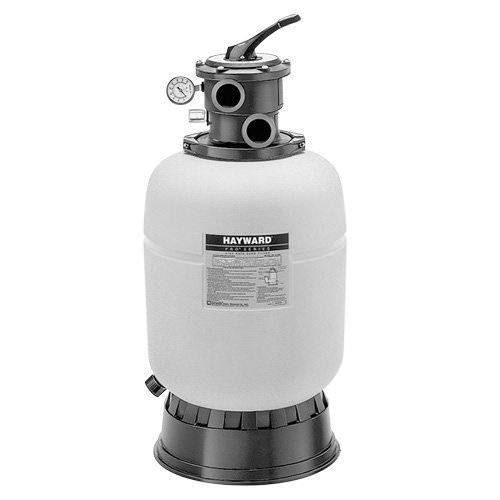

Hayward W3S166T Sand Filter with Valve

The Hayward W3S166T Sand Filter is built with a top diffuser which evenly distributes water over the sand providing the best filtration possible while the self cleaning 360 degree laterals provide an efficient flow of clean water to your pool and more thorough backwashes. The S166T includes an easy to use top mount multiple position valve allowing for efficient and simple operation. The filter operates for shorter periods of time with it's full-flow technology ultimately saving you money. Built to last, Hayward Sand Filters are molded with durable, corrosion-proof reinforced thermoplastic.

More Information
Delivery Time 2-5 Business Days
Manufacturer Hayward
Technical Specs

Dimensions: 16 ½”W x 33 ”H
Sand Required: 100 lbs
Turnover: 8hrs=14,400 Gallons, 10hrs=18,000 Gallons
Flow Rate: 30 GPM (Gallons Per Minute)
Filtration Area: 1.40 Sq Ft
Filter Type: High-Rate Sand: No. ½ Silica Sand (.45 mm - .55mm)
Filter Tank: Molded Polymeric
Underdrain: 360º Self-Cleaning Slotted Laterals, Precision-Installed in Ball Joint Assembly
Control Valve: 1 ½” or 2” 7-Position, Top-Mount Vari-Flo™ with Lever-Action Handle
Valve Fastening: Flange Clamp Design
Support Base: Injection-Molded Polymer

Product Documentation
SKU HAY-05-801
Manufacturer Part # W3S166T
Product Features
  • Hayward model W3S166T, HAYW3S166T
  • Flange clamp has 360 degree rotationg valve to simplify plumbing.
  • Integral top diffuser ensures even distribution of water over sand.
  • Full size internal piping for smooth free-flowing performance.
  • Unitized corrosion-proof filter tank molded of  polymeric material
  • 6-position Hayward Vari-Flo control valve
  • Integral sight glass lets you see when backwash cycle is finished.
  • Efficient multi-lateral under drain assembly
  • 360 degree slotted self-cleaning laterals
  • Integral molded drain plug for easy draining of tank
  • 1-Year Parts Only Warranty
In stock
$399.00
