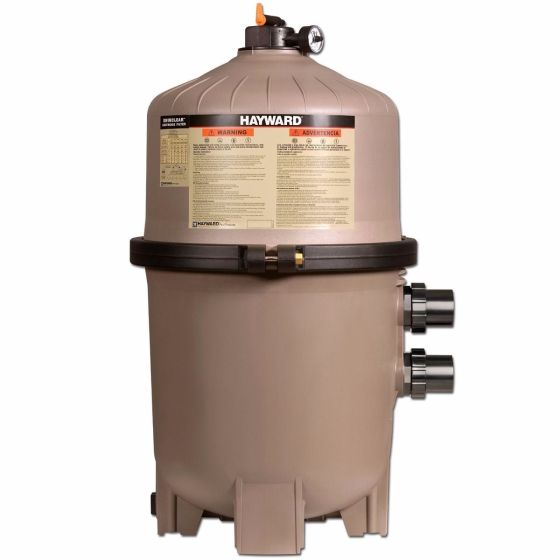

Hayward W3C5030 SwimClear 525 Sq Ft Pool Cartridge Filter

The Hayward SwimClear C5030 large capacity cartridge filter offers an increased filtration area for a bigger, better clean. The SwimClear C5030 filter offers 525 square feet of heavy-duty, dirt-holding capacity for extra-long cleaning cycles. Utilizing a cluster of four reusable cartridge elements, the SwimClear has a non-corrosive top closure plate which prevents the cartridge elements from from lifting and allowing unfiltered water to reach the pool or spa.

With no need to backwash you simply rinse the filter elements with a garden hose saving up to 2,500 gallons of water every season saving you money on your water bill and significantly reducing water waste. The SwimClear does not require a multi-port valve resulting in less electricity use. With a filter tank constructed of reinforced co-polymer PermaGlass XL material, SwimClear filters stand up to the toughest environments while providing years of trouble-free operation and crystal clear, sparkling water-all season long.

More Information
Delivery Time LTL Freight 5-10 Business Days
Manufacturer Hayward
Technical Specs

Flow Rate: 150 GPM (Gallons Per Minute)
Effective Filtratiion Area: 525 Square Feet
Turnover: 8hrs= 72,000 Gallons

Product Documentation
SKU HAY-05-825
Manufacturer Part # W3C5030
Product Features
  • Hayward model C5030 SwimClear Cartridge Filter
  • Replaces models C5000, C5020, C5025
  • Quad cluster cartridge elements
  • Provides 525 sq ft of filter area
  • Self-aligned tank top and bottom for access easay
  • Heavy-duty, tamper-proof, one-piece clamp
  • PVC union connections
  • 1-1/2 inch or 2 inch plumbing
  • Full sized 2 Inch internal plumbing for less resistance
  • Visual indication when cartridges need to be cleaned
  • Made from extra durable glass reinforced thermoplastic
  • High capacity rapid release manual air relief valve
  • 1 Year manufacturer's limited warranty
In stock
0 reviews
Special Price $1,399.00 was $1,699.99
You save: $300.99 (17%)
Wish List Compare
