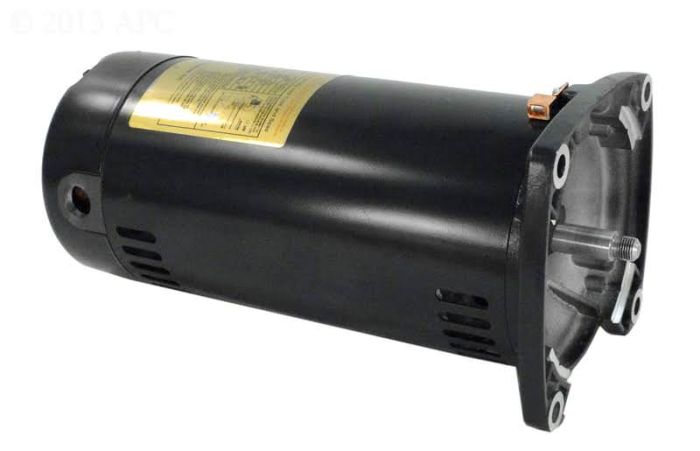

Hayward SPX2710Z1M Pool Pump Motor Square Flange 1.5 HP 115/230V
The Hayward SPX2710Z1M Pool Pump Motor is a square flange 1.5 Horsepower Motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft. This motor is specifically used on Hayward Max-Flo II and Max-Flo XL pool pumps. This is a genuine Hayward replacement part.
IMPORTANT NOTE: Pumps and replacement motors that are single speed and one (1) HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. We recommend either a dual speed or variable speed pump for California residents.
Delivery Time | 2-5 Business Days |
---|---|
Manufacturer | Hayward |
Technical Specs | HP: 1.5 HP |
SKU | HAY-101-2733 |
Manufacturer Part # | SPX2710Z1M |
Product Features
- Hayward part number SPX2710Z1M
- Replaces: C48D43A04, HAY-101-2733, HAYSPX2710Z1M
- HP: 1.5 HP
- Service Factor: 1.1
- Volts: 115/230 V
- Amps: 16.5 / 8.5
- Square Flange (Face)
- Threaded Shaft
- Capacitor start
- All copper windings
- Automatic thermal protection
- Stainless steel threaded shaft
- Sealed ball bearings
- Requires SPX2700SA Shaft Seal - sold separately
- Cross Reference: C48D43A04, C48D43A04ACED
- Used on Hayward Max-Flo II pumps
In stock
$396.99
