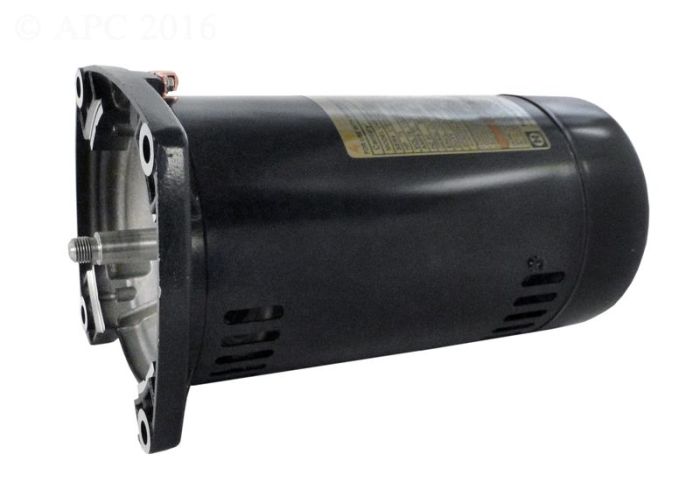

Hayward SPX2705Z1M Max-Flo II Pool Pump Motor 3/4 HP Square Flange

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

More Information
Delivery Time 2-5 Business Days
Manufacturer Hayward
Technical Specs
  • Motor Frame: 48Y
  • Horsepower: 3/4 HP
  • Voltage: 115 / 230 Volt
  • Amperage: 10.0 / 5.0
  • Service Factor: 1.27
  • RPM: Single speed - 3450 RPM
  • Rotation: CCW at Pump End
  • Max Temp: 50 Degrees Celsius ambient


Works with the following pumps:
Hayward Max-Flo II

SKU HAY-101-2730
Manufacturer Part # SPX2705Z1M
Product Features
  • Hayward part number SPX2705Z1M
  • Color may vary between black or gold
  • 3/4 HP
  • 48Y Square Flange
  • Threaded Shaft
  • 115 / 230 Volt
  • Capacitor Start
  • Automatic Overload Protection
  • Non-Reversible CCW
  • Stainless Steel Shaft
  • For Hayward Max-Flo II Pumps
  • Shaft Seals, Gaskets and other parts sold separately
  • Shaf seal part number SPX2700SA (sold separately)
In stock
$316.99
