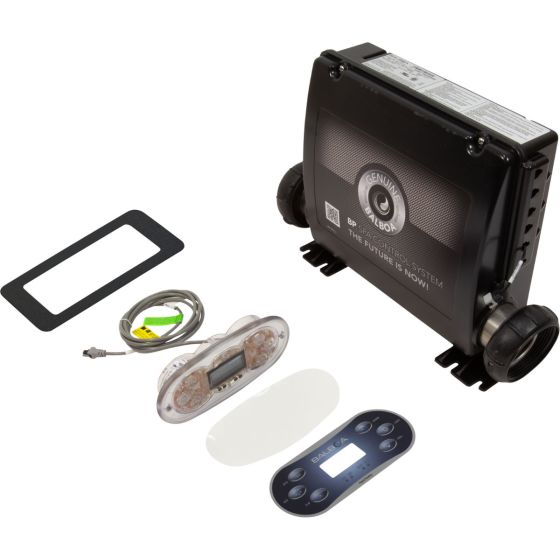

Balboa BP7 Series TP600 Control System Retrofit Kit G6406
A system built for the aftermarket.. With 7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems. Can also replace any Balboa BP System* while using the existing topside that is already installed on the spa. Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel. Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel. This system can only be used at 220v.
KIT INCLUDES:
- G4361 - Balboa BP7 System with 4.0kW Heater
- 55676-09 - Balboa TP600 Panel, Less Overlay
- 12762 - TP600 Panel Overlay (6-Button, Oval)
- 25098 - Wire Assembly, 8ft for spa light
- 15380 - Panel Bezel (Adapter Plate)
Wire harness not included
Replaces VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ, VS513Z, VS514SZ, VS515Z, VS515SZ, VS520Z, VS520SZ, VS520DZ, VS525Z, 50-BP7-600-40-K
Delivery Time | 3-5 Business Days |
---|---|
Manufacturer | Balboa |
SKU | HQP-85-9911 |
Manufacturer Part # | 50-BP7-600-40-K |
Product Features
- Main Circuit - 2- Speed Pump 120/240V
- 2nd Circuit - 1- Speed Blower or Pump 120/240V
- 3rd Circuit - 1- Speed Blower or Pump 120/240V
- Spaside Control - Included
- Heater Style - Straight/Fixed, Wattage - 4.0kW
- System Voltage - 120/240V
- Component Configuration - Pump1 + Pump2/Blower + Pump3
In stock
$499.99
