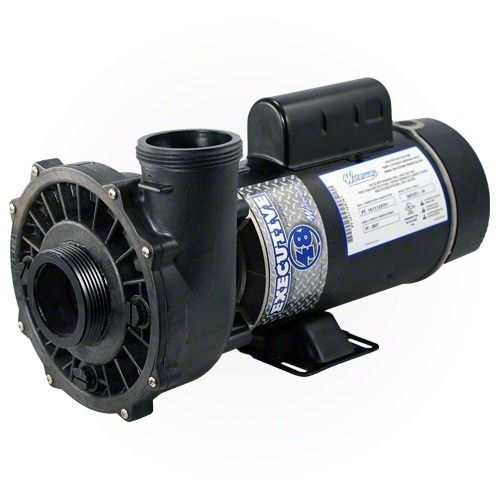

Waterway Executive 1.5 HP 2-Speed 115V 2" Spa Pump - 48 Frame - 3420610-1A

The Waterway Executive 48 Spa Pump is thermally protected which extends the motor's life expectancy and includes a highly versatile wet end that can be rotated every 90 degrees for multiple plumbing options. Waterway Executive 48-Frame Pumps include a 2 year manufacturer's warranty on the motor and a 3 year warranty on the wet end.

The Waterway Executive 3420610-1A 115V Spa Pump has a 2" Suction (Intake) Connection and a 2" Discharge Connection.

More Information
Delivery Time 2-5 Business Days
Manufacturer Waterway
Technical Specs

Suction Connection Size: 2"
Suction Connection Type: Male Buttress Thread (mbt)
Discharge Connection Size: 2"
Discharge Connection Type: Male Buttress Thread (mbt)
Operational Horsepower: 1.5hp
Speed: 2-speed
Motor Frame: 48 Frame
Motor Amperage: 16.4A/4.4A
Spa Pump Model: Executive
Motor Voltage: 115V

Product Documentation
SKU WWP-10-1001
Manufacturer Part # 3420610-1A
Product Features
  • Executive wet end designed specifically for 48-frame motors
  • Large 6.5" diameter wet end for higher head pressure
  • Thermally protected to extend life expectancy of motor
  • Highly versatile wet end can be rotated every 90 degrees
  • Chemical resistant Viton shaft seal
  • 2" Suction x Discharge 2"
  • Waterway model: 3420610-1A
  • Horsepower: 1.5 HP
  • Voltage: 115V
