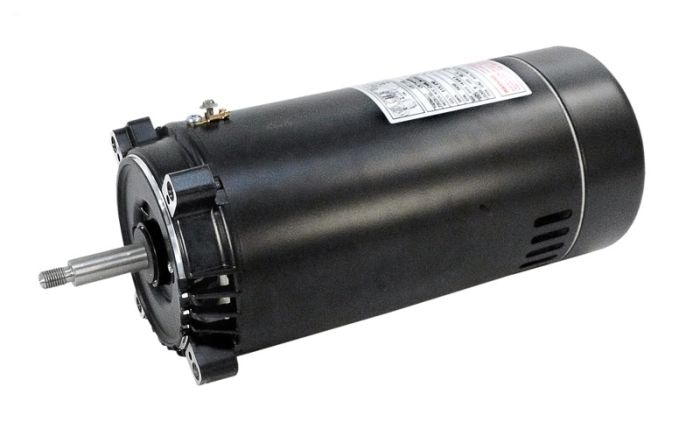

UST1152 Pool Pump Motor 1.5 HP 56J Frame C-Face 115/230V

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.

Cross Reference: SPX1615Z1B, SPX1610Z1M, C48L2N131A7, C48L2N134, C48L2N134A3, C48L2N134A4, C48L2N134A5, C48L2N134A9, K48L2N103, UST1152, 168099, 177020, B229, B229SE, C1319, EB229, 54024, 8-168099-20, 8-177020-20, 8-177020-23, 8-177020-21, SP1610Z1M, SP1615Z1B, C48L2N134, 5KCR39SN2823X, C48L2N134C1, C48L2N134B1, C48L2N134B3, R0556102, R0552802

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

IMPORTANT NOTE: Pumps and replacement motors that are single speed and one (1) HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. We recommend either a dual speed or variable speed pump for California residents.

More Information
Delivery Time 2-5 Business Days
Manufacturer AO Smith
Technical Specs

Horsepower: 1.5 HP
Service Factor: 1.0
Voltage: 115 / 230 Volt
Amperage: 18.6 / 9.3
RPM: Single speed - 3450 RPM
Rotation: CCW at Pump End
Max Temp: 50 Degrees Celsius ambient

Works with the following pumps:
Hayward Super Pump
Hayward Super II
Hayward Max-Flo
Hayward NorthStar
Jandy Stealth
Jandy Plus HP
Jandy HHP
Jacuzzi Magnum

SKU AOS-60-5241
Manufacturer Part # UST1152
Product Features
  • 1.5 HP - Up Rated
  • Service Factor: 1.0
  • 56J Frame
  • 56C Face Mount
  • Threaded Shaft
  • 115 / 230 Volt
  • 18.6 / 9.3 amps
  • Capacitor Start
  • Automatic Overload Protection
  • Non-Reversible CCW
  • Stainless Steel Shaft
  • Replaces Hayward numbers SPX1615Z1B, SPX1610Z1M
  • Replaces Jandy numbers R0556102, R0552802
In stock
$309.99
