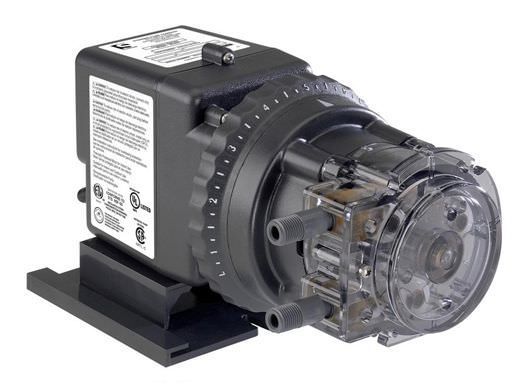

Stenner 85M5 Classic Series Peristaltic Metering Pump - 120V - 1/4" - 85MJL5A1STAA

Stenner 85MJL5A1STAA Peristaltic Metering Pumps are based on a simple, well-engineered design that minimizes complexity and delivers reliable performance. The time-tested designed is renowned for consistent quality and ease of service, which increases dependability for users while reducing service time and expense.

Stenner's adjustable metering pump is built with three detachable components: the motor, feed rate control, and pump head. Outputs are dependent upon three factors: the rpm of the motor gears, the percentage setting on the feed rate control, and the size of the peristaltic pump tube. All Stenner metering pumps have a 3-point roller design in the pump head, which acts as a check valve to prevent back flow, siphoning, overdosing and loss of prime.

The motor shaft rotates at a fixed rpm which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump head. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self-priming feature that delivers a constant flow unaffected by the outlet pressure.

More Information
Delivery Time 2-5 Business Days
Manufacturer Stenner
Technical Specs

Accessories shipped with each pump:
3 connecting nuts 1/4"
3 ferrules 1/4" & 6 mm
1 injection check valve
1 weighted strainer
1 20' roll of suction/discharge tubing 1/4" UV black
1 spare pump tube
1 mounting bracket
1 installation manual

Outputs at 60 Hz
Suction lift: 25' (7.6 m)
Max operating temp: 125° F (52° C)
Gallons per day: 4.3 to 85
Gallons per hour: 0.18 to 3.54
Liters per day: 16.3 to 321.8
Liters per hour: 0.68 to 13.4
Ounces per minute: 0.38 to 7.55
Milliliter per minute: 11.32 to 223.4
Length: 10.6
Width: 5.3
Height: 6.0 in

Product Documentation
SKU GHS-45-820
Manufacturer Part # 85MJL5A1STAA
Product Features
  • Single Head Adjustable Output Pump
  • Adjustable feed rate control from 5%-100% in 2.5% increments
  • Self-priming up to 25 feet & does not lose prime
  • Subassemblies fit together without tools for easy service or conversion
  • Solutions contained in tube, not exposed to pump components or air
  • Reproducible outputs within 2%
  • Can pump off-gassing solutions
  • Can run dry without damage
  • Will not clog from dirt or debris
  • Pump tubes will accept a variety of chemicals
  • Pump head universal to all Stenner pumps
  • 1/4 inch
  • 85 gpd
  • Discharge pressure: 0-25 psi (0-1.7 bar)
  • 120V / 60 Hz
  • Amps: 1.7
  • Motor: Shaded pole; 44 rpm; 1/30 HP
In stock
$449.99
