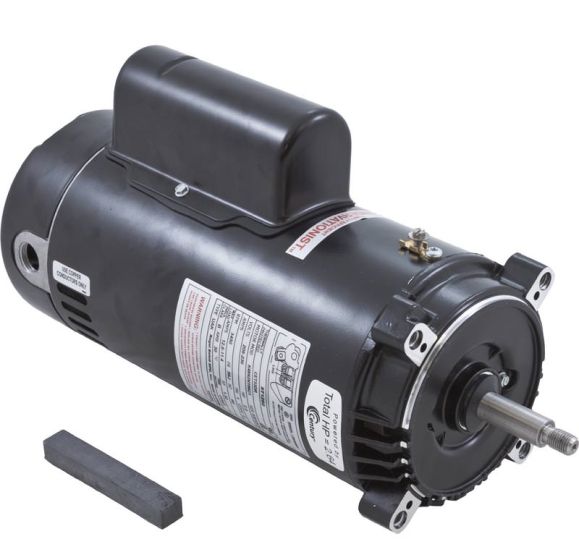

ST1202 2 HP Pool Pump Motor 56J Frame C-Face 208-230V - Energy Efficient

The AO Smith ST1202 Energy Efficient Pool Pump Motor is a C-Face Mount style motor with a 56J Frame and is a 2 Horsepower Motor. C-Frame motors have a round "face" where the motor mounts to the pump with 4 bolt holes to attach the pump and a threaded shaft. C-Face 56J Frame Motors are most commonly used on Hayward Super II, Hayward Super Pump, Hayward Northstar, Hayward Max-Flo, Jacuzzi Magnum, Jandy Plus HP, Jandy Stealth and Jandy HHP pumps.

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.

Cross Reference: SP1615Z1MBK, SP1615Z1MEE, SP1620Z1B, SP1620Z1BEE, SPX1620Z1BEE, SP1620Z1MEE, SP1620Z1MH, SPX1615Z1M, C48M2DB11C10, C56M2N111, C56M2N11A1, C56N2N104, C56N2N104A1, C56N2N105, C56N2N106, C56N2N107A1, C56N2T61, C56N2T61A1, C56N2T61A2, C56N2U11A1, C56N2U11A7, K48M2N113, K48M2N113A1, K48N2N104, K48N2N104A1, K48N2N107A1, K48N2N107A2, K48N2N113A1, K48N2N113A3, K48N2N113A4, K56N2N100A1, ST1202, 164567, 165114, 177027, 177033, B109, B130, B711, B773, B809, B836, C1102, C494, EB130, EB809, 12039, 13300, 13800, 15027, 15226, 52012, CT120C, CT220CE, 5KCR49UN2090X, B809

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

IMPORTANT NOTE: Pumps and replacement motors that are single speed and one (1) HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. We recommend either a dual speed or variable speed pump for California residents.

More Information
Delivery Time 2-5 Business Days
Manufacturer AO Smith
Technical Specs

Horsepower: 2 HP
Service Factor: 1.30
Voltage: 208-230 Volt
Amperage: 12.6-11.4
RPM: Single speed - 3450 RPM
Rotation: CCW at Pump End
Max Temp: 50 Degrees Celsius ambient

SKU AOS-60-5066
Manufacturer Part # ST1202
Product Features
  • Model number ST1202
  • 2 HP - Full Rated
  • Energy Efficient
  • Service Factor: 1.30
  • 56J Frame
  • 56C Face Mount
  • Threaded Shaft
  • 208-230 Volt
  • 12.6-11.4 amps
  • Capacitor Start
  • Automatic Overload Protection
  • Non-Reversible CCW
  • Stainless Steel Shaft
