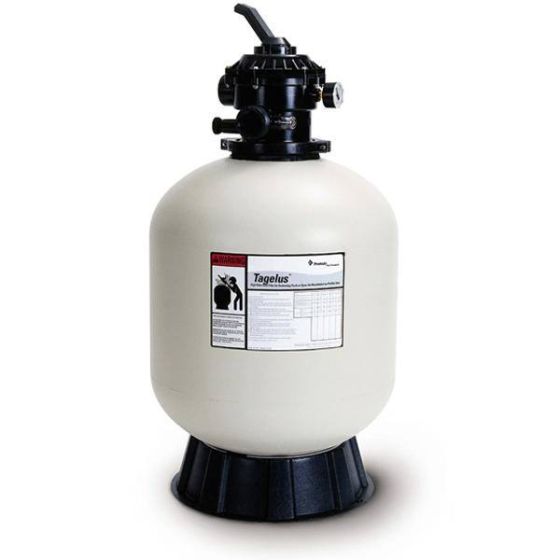

Pentair Tagelus 30 Inch Sand Filter with Top Mount Valve - TA100D - 145240

Pentair Tagelus TA100D 30 inch fiberglass sand filters remove particles large and small...so small that many are undetectable by the human eye, but in quantity make water cloudy. The reason thousands of Tagelus filters have been installed by pool owners worldwide is their consistency of performance over time.

The Tagelus tank is constructed in one piece from fiberglass-reinforced material to deliver unmatched strength and durability for years of service. The six-position Hi-Flow valve has a manual air relief valve and a sight glass to make inspection, routine maintenance and operation fast, easy and always safe. A special diffuser creates a uniform sand bed that consistently traps more dirt without impeding the water flow or letting it race through too fast; the result is more effective filtration and longer times between backwashing.

More Information
Delivery Time LTL Freight 5-10 Business Days
Manufacturer Pentair
Technical Specs

Pentair Model Number: TA100D / 145240 / EC-145240
Filtration Area: 4.9 Sq Ft
Plumbing: 2"
Filter Diameter: 30-1/2"
Vertical Clearance Required: 65-1/2"
Sand Required: 600 lbs
Flow Rate: 100 Gallons per Minute
Turnover: 8 Hours - 48,000 Gallons / 10 Hours - 60,000 Gallons
Maximum Operating Pressure: 50 psi

Product Documentation
SKU PAC-05-0078
Manufacturer Part # EC-145240
Product Features
  • Pentair model TA100D, 145240 , EC-145240
  • Replaces: PAC-05-0078, PENEC-145240
  • Tagelus 30 Inch pool sand filter
  • Hi-Flow valve with air relief included
  • 2 Inch plumbing connections
  • Special lateral design for superior flow
  • Combination water and sand drain
  • Servicing and winterizing is fast and easy
  • One piece fiberglass reinforced material
  • Only periodic backwashing needed to remove debris
  • Special diffuser creates a uniform sand bed
  • Consistently traps more dirt without impeding water flow
  • Water exposed to maximum surface area for optimal filtration
  • Maximum run times between backwashing to save you time
  • Sand and water drain speeds servicing and winterizing
  • All internal parts are threaded for fast and easy service
