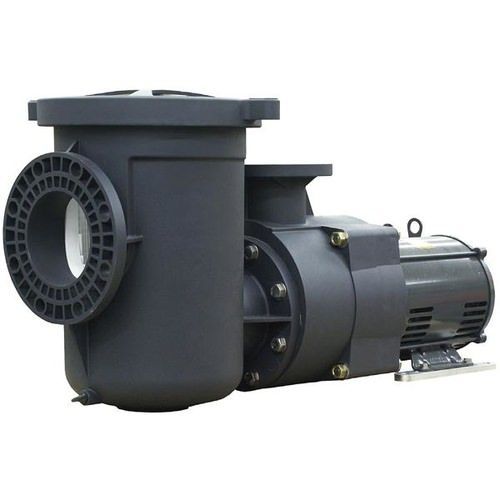

Pentair EQK1000 Commercial Plastic 10 HP Pump with Strainer - 230/460V - 3-Phase | 340034

EQ Series commercial pumps are designed for maximum efficiency and quiet operation in every detail. They are the only non-corrosive, all plastic pumps designed exclusively for the commercial pool and water applications market. EQ Series Impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life. Available with and without strainer pot.

The Pentair EQ500 340034 Pump is a 10 Horsepower, 230/460 Volt three phase pump with a hair and lint strainer pot.

More Information
Delivery Time 2-5 Business Days
Manufacturer Pentair
Technical Specs

Part Number: EQK1000 / 340034
Voltage: 230/460 Volt
Phase: 3 Phase
Amperage: 27.0/26.2-13.1 Amps
Horsepower: 10 HP
RPM: 3500 RPM
Pump Body: Volute type, back pull-out design.
Suction Port: 6" ANSI 150 bolted flange suction port.
Discharge Port: 4" ANSI 150 bolted flange discharge port.
Max Liquid Temperature: 104º F
Max Ambient Air Temperature: 104º F
Motor: Standard JM type open drip-proof, continuous duty.
Frame Size: NEMA "C" flange.
Shaft: 303 Stainless steel construction.
Bearings: Double shielded, single row, deep groove type, permanently lubricated.
Thermal Overload Protection: All models require external thermal overload protector.

Product Documentation
SKU PAC-10-0034
Manufacturer Part # 340034
Product Features
  • Pentair part numbers 340034, EQK1000, EQK 1000
  • 10 HP Commercial Pool Pump
  • 3 Phase - 208-230/460 Volt
  • 6" suction and 4" discharge with strainer pot
  • Nema Premium Grade Efficiency Motors
  • Commercial grade, non-corrosive Plastic Parts for long life
  • Self-priming under NSF standards
  • NSF listed with Hair and Lint Strainer
  • Drop-in replacement for C Series Pump
  • Compatible with variable frequency drives
  • Easy cleaning and serviceability
  • Close coupled for quiet, stable flow operation
  • Lightweight for easy, one-man installation
  • Cam and Ramp locking ring design with clear lid
  • Closed impeller for long life and durability
