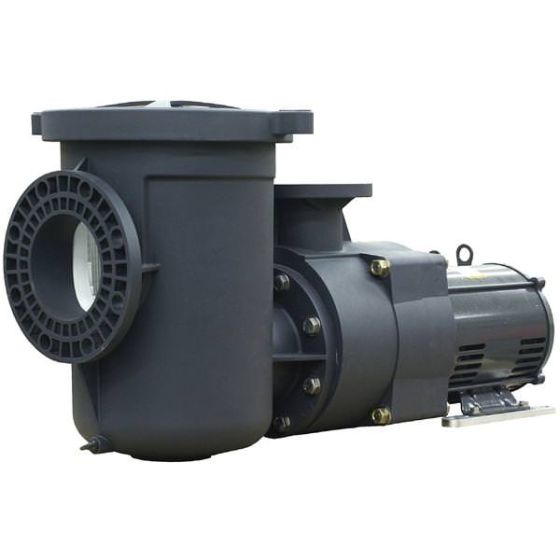

Pentair EQ500 Commercial Plastic 5 HP Pump with Strainer - 230V | 340030

Pentair EQ Series commercial pumps are designed for maximum efficiency and quiet operation in every detail. They are the only non-corrosive, all plastic pumps designed exclusively for the commercial pool and water applications market. EQ Series Impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life.

The Pentair EQ500 340030 Pump is a 5 Horsepower, 230 Volt single phase pump with a hair and lint strainer pot.

More Information
Delivery Time LTL Freight 5-10 Business Days
Manufacturer Pentair
Technical Specs

Part Number: EQ500 / 340030
Voltage: 230 Volt
Phase: 1 Phase
Amperage: 19.6 Amps
Horsepower: 5 HP
RPM: 3500 RPM
Pump Body: Volute type, back pull-out design.
Suction Port: 6" ANSI 150 bolted flange suction port.
Discharge Port: 4" ANSI 150 bolted flange discharge port.
Max Liquid Temperature: 104º F
Max Ambient Air Temperature: 104º F
Motor: Standard JM type open drip-proof, continuous duty.
Frame Size: NEMA "C" flange.
Shaft: 303 Stainless steel construction.
Bearings: Double shielded, single row, deep groove type, permanently lubricated.
Thermal Overload Protection: All models require external thermal overload protector.

Product Documentation
SKU PAC-10-0030
Manufacturer Part # 340030
Product Features
  • Pentair part numbers 340030, EQ500, EQ 500
  • 5 HP Commercial Pool Pump
  • 230 Volt
  • 6" suction and 4" discharge with strainer pot
  • Nema Premium Grade Efficiency Motors
  • Commercial grade, non-corrosive Plastic Parts for long life
  • Self-priming under NSF standards
  • NSF listed with Hair and Lint Strainer
  • Drop-in replacement for C Series Pump
  • Compatible with variable frequency drives
  • Easy cleaning and serviceability
  • Close coupled for quiet, stable flow operation
  • Lightweight for easy, one-man installation
  • Cam and Ramp locking ring design with clear lid
  • Closed impeller for long life and durability
In stock
