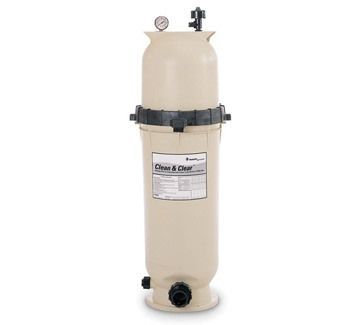

Pentair Clean and Clear 200 Sq Ft Cartridge Filter 160318

The Pentair 160318 Clean and Clear 200 Cartridge Filters feature a chemical resistant tank with no-tool servicing and a core-less cartridge for easier cleaning. All models are equipped with easy spin-on unions for plumbing hook-ups and are NSF listed for commercial applications. The fiberglass reinforced tank halves are secured with an innovative clamp ring – just loosen the ring and remove the top half for easy cartridge access and rinsing. Pentair has also maximized the cartridge surface consistency to block and trap the maximum amount of solids and the Clean & Clear uses the most durable materials to extend cartridge life. The Pentair Clean & Clear will keep your pool sparkling day in and day out.

More Information
Delivery Time 2-5 Business Days
Manufacturer Pentair
Technical Specs

  • Effective Filtration Area: 200 square feet
  • Flow Rate: 150 GPM (Gallons Per Minute)
  • Turnover: 8hrs= 72,000 Gallons, 10hrs= 90,000 Gallons, 12hrs= 108,000 Gallons
  • Vertical Clearance Required: 76" Inches
Product Documentation
SKU PAC-05-504
Manufacturer Part # 160318
Product Features
  • Pentair part number 160318
  • 200 Sq Ft Clean & Clear Filter Cartridge
  • For above ground pool and smaller in ground pools and spas
  • High-Flow manual air relief valve
  • Constructed of fiberglass-reinforced polypropylene for strength
  • Unionized connections
  • Lock ring with spring-loaded safety latches
  • Innovative lock-ring requires only 1/2 of a revolution for a seal
  • Clamp ring allows safe and easy access to internal parts
  • Coreless cartridge for easy cleaning
  • Cartridge is easy to remove and rinse
  • 1-1/2 inch drain and wash out
  • 2 inch plumbing for maximum flow
  • Maximum pool size 72,000 Gallons
  • One-year limited warranty. See warranty for details
