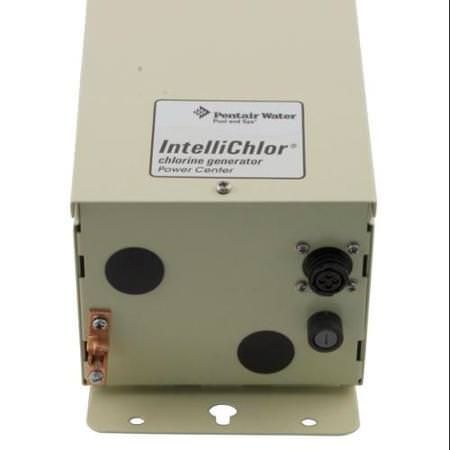

Pentair 520556 IntelliChlor Salt Chlorinator Power Center

The Pentair EC-520556 IntelliChlor Salt Chlorinator Power Center operates with a Pentair IntelliChlor Cell and can be used with the IC20, IC40 or IC60 cell (sold separately) based on your pool size. The IntelliChlor Salt Chlorinator uses ordinary salt to produce all the chlorine your pool needs to automatically sanitize your pool safely and effectively IntelliChlor produces the same sanitation performance as manually adding chlorine while eliminating all the drawbacks of manual chlorination.

The IntelliChlor Power Center converts an AC electrical current to the low voltage DC current that the salt cell requires to operate and perform the electrolysis. Since the power supply is connected with the pool pump's electrical source the cell will only operate while the pump is running. The system's transformer, fuse and connection to the cell are housed in the power center along with the 110 VAC wiring configuration with the 36 V DC output cable to the cell controller.

More Information
Delivery Time 2-5 Business Days
Manufacturer Pentair
Technical Specs

Pentair part number EC-520556
Power Center only - requires cell to operate
Cell options: IC20 (20k gallon), IC40 (40k gallon), IC60 (60k gallon)
Certified to UL 1081 standard for safety
NSF approved
Health Canada approved
1 Year manufacturer's warranty
Can be wired for 220V or 110V


Product Documentation
SKU PAC-45-1556
Manufacturer Part # EC-520556
Product Features
  • Same sanitation performance as manual chlorine
  • None of the drawbacks of chlorine
  • No need to buy, transport and store expensive chlorine
  • No more odor, stinging eyes, irritated skin, bleached suits
  • Easiest, most convenient way to keep pools sparkling clean
  • Uses common table salt to produce all the chlorine needed
  • Salt is recycled continuously to reduce pool maintenance
  • Generator  keeps itself clean with automatic reverse cycling
  • Control electronics are isolated in the cell
  • Ability to communicate with Pentair Automation Systems
  • Requires Pentair IntelliChlor Cell (sold separately)
  • Cell Options: IC20 (20k gallon), IC40 (40k gallon), IC60 (60k gallon)
  • Cells rated for 10,000 hours of operation – 5 years average
  • Full diagnostic capabilities, including cell life tracking
  • Communicates remaining hours of cell life in real-time
  • Cell captures all performance data daily
  • Push-button operation and easy-to-view displays
  • Automatic shut-off feature protects the unit & prolongs cell life
  • Can be wired for 220V or 110V
  • Replaces: 520556, 2824-020, 621072, 788379691981, PAC-45-0556, EC520556, PAC-45-1556, PENEC-520556
