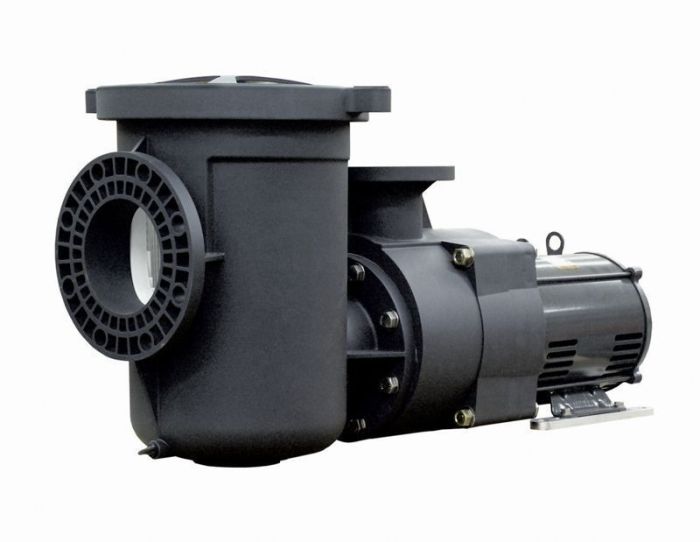

Pentair EQK500 Commercial Plastic 5 HP Pump with Strainer - 208-230/460V | 340031

Pentair EQ Series commercial pumps are designed for maximum efficiency and quiet operation in every detail. They are the only non-corrosive, all plastic pumps designed exclusively for the commercial pool and water applications market. EQ Series Impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life.

The Pentair EQK500 340031 Pump is a 5 Horsepower, 208-230/460 Volt three phase pump with a hair and lint strainer pot.

More Information
Delivery Time 2-5 Business Days
Manufacturer Pentair
Technical Specs

Part Number: EQK500 / 340031
Voltage: 208-230/460 Volt
Phase: 3 Phase
Amperage: 13.5 - 12.3/6.2 Amps
Horsepower: 5 HP
RPM: 3500 RPM
Pump Body: Volute type, back pull-out design
Suction Port: 6" ANSI 150 bolted flange suction port
Discharge Port: 4" ANSI 150 bolted flange discharge port
Max Liquid Temperature: 104º F
Max Ambient Air Temperature: 104º F
Motor: Standard JM type open drip-proof, continuous duty
Frame Size: NEMA "C" flange
Shaft: 303 Stainless steel construction
Bearings: Double shielded, single row, deep groove type, permanently lubricated
Thermal Overload Protection: All models require external thermal overload protector

Product Documentation
SKU PAC-10-0031
Manufacturer Part # 340031
Product Features
  • Pentair part number 340031, EQK500, EQK 500
  • 5 Horsepower Commercial Pool Pump
  • 6" suction and 4" discharge with strainer pot
  • Nema Premium Grade Efficiency Motors
  • Commercial grade, non-corrosive Plastic Parts for long life
  • Self-priming under NSF standards
  • NSF listed with Hair and Lint Strainer
  • Drop-in replacement for C Series Pump
  • Compatible with variable frequency drives
  • Easy cleaning and serviceability
  • Close coupled for quiet, stable flow operation
  • Lightweight for easy, one-man installation
  • Cam and Ramp locking ring design with clear lid
  • Closed impeller for long life and durability
