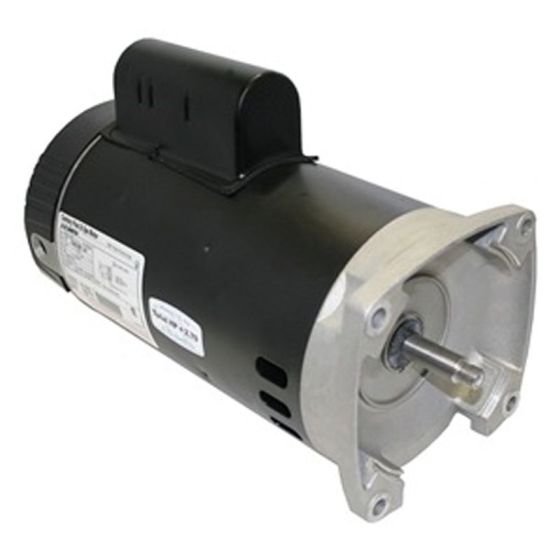

HSQ1102 TriStar Pool Pump Motor 56Y Frame 1 HP Square Flange 115/230V

The AO Smith HSQ1102 TriStar Pool Pump Motor is a square flange style motor with a 56Y Frame and is a 1 Horsepower Motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.

The HSQ1102 motor replaces Hayward part number SP3210Z1BE.

More Information
Delivery Time 5-10 Business Days
Manufacturer AO Smith
Technical Specs

Horsepower: 1 HP
Service Factor: 1.85
Voltage: 115/208-230
Amperage: 15.0/8.8-7.5
Frame: 56Y
RPM: Single speed - 3450 RPM

SKU AOS-60-2710
Manufacturer Part # HSQ1102
Product Features
  • A.O. Smith Part Number HSQ1102
  • Replaces Hayward part number SP3210Z1BE
  • 1 HP - Full Rated
  • Service Factor: 1.85
  • 56Y Frame
  • 115V/208-230V
  • 15.0/8.8-7.5 amps
  • Square Flange (Face)
  • Threaded Shaft
  • Capacitor start
  • All copper windings
  • Automatic thermal protection
  • Stainless steel threaded shaft
  • Sealed ball bearings
  • Requires SPX3200SA Shaft Seal - sold separately
  • Cross Reference: SP3210Z1BE, SP3210Z1BER, SPX3210Z1BER
