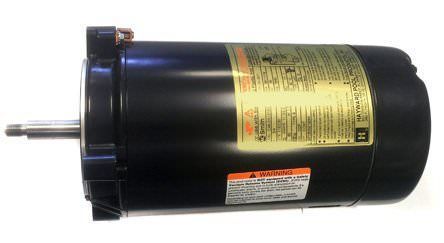

Hayward SPX1615Z1M Pool Pump Motor 2 HP 56J Frame 115/230V

The Hayward SPX1615Z1M Pool Pump Motor is a C-Face Mount style motor with a 56J Frame and is a 2 Horsepower Motor. C-Frame motors have a round "face" where the motor mounts to the pump with 4 bolt holes to attach the pump and a threaded shaft.

Hayward SPX1615Z1M 2 HP Pump Motors are used on Hayward Super II, Hayward Super Pump and Hayward Max-Flo Pumps. This is a factory original Hayward replacement part.

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

More Information
Delivery Time 2-5 Business Days
Manufacturer Hayward
Technical Specs

Horsepower: 2 HP
Voltage: 115 / 230 Volt
RPM: Single speed - 3450 RPM
Rotation: CCW at Pump End
Max Temp: 50 Degrees Celsius ambient

Works with the following pumps:
Hayward Super Pump
Hayward Super II
Hayward Max-Flo

SKU HAY-101-9769
Manufacturer Part # SPX1615Z1M
Product Features
  • Hayward part number SPX1615Z1M
  • Color may vary between black or gold
  • 2 HP
  • 56J Frame
  • 56C Face Mount
  • Threaded Shaft
  • 115 / 230 Volt
  • Capacitor Start
  • Automatic Overload Protection
  • Non-Reversible CCW
  • Stainless Steel Shaft
  • For Hayward Super Pump, Super II and Max-Flo
  • Shaft Seals, Gaskets and other parts sold separately
  • For Super Pumps use shaft seal SPX1600Z2 or Go-Kit 3
  • For Super II use shaft seal SPX1600Z2 or Go-Kit 2
  • For Max-Flo use shaft seal SPX1600Z2 or Go-Kit 1
