0 reviews

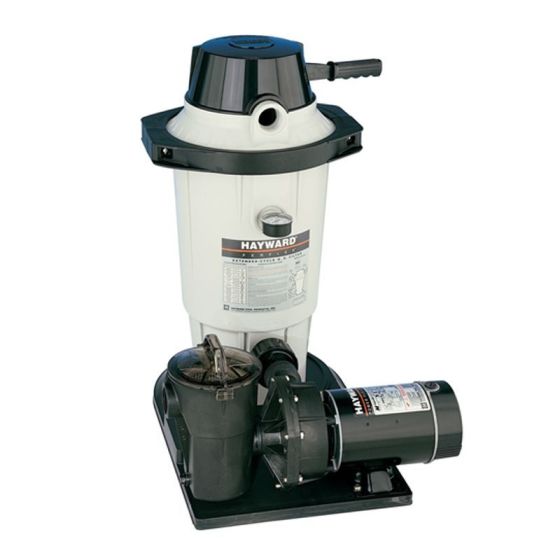

Hayward Perflex 20 Sq Ft DE Filter System w/ 1 HP Pump W3EC40C92S

This system provides you with the perfect opportunity to upgrade your pool to Diatomaceous Earth filtration at a great price. The Hayward EC40C92S Perflex Extended Cycle DE Filter System includes a 1 HP PowerFlo Matrix Pump for above ground pools and a EC40AC 20 Sq Ft Perflex DE Filter. These advanced filtration systems operate with less resistance than standard units and produce more filtered water while using less pump horsepower.

The PowerFlo Matrix is extremely efficient with a heat-resistant, double-size seal and a protected rear-mounted switch for high energy efficiency. The heavy-duty, high-performance motor provides years of trouble-free operation thanks to an integrated automatic thermal overload protector.

More Information
Delivery Time 2-5 Business Days
Manufacturer Hayward
Technical Specs

Perflex EC40AC 20 Sq Ft DE Filter
Power-Flo Matrix 1 HP Pump w/ Cord
2 - 1.5" x 6' hoses, hose adapters & clamps
Turnover in 8 Hours: 19,200 Gallons
Turnover in 10 Hours: 24,000 Gallons
DE Required: 4 lbs

Product Documentation
SKU HAY-05-831
Manufacturer Part # W3EC40C92S
Product Features
  • Hayward part number W3EC40C92S
  • Replaces EC40C92S
  • Pump-to-filter union connection
  • Simple installation and winterization
  • Corrosion-proof, modular platform base
  • Base accepts optional chlorine feeder
  • Flex-Tube filter elements efficiently reuse D.E.
  • No Backwashing - Perflex only needs Bumping
  • Bump handle activates bump mechanism
  • Flex-Tubes instantly clean themselves with bump
  • 1.5" Plumbing connections
  • 40 Gallon per minute flow rate
  • Works on above ground pools up to 24,000 gallons
  • Includes Perflex EC40AC DE Filter
  • Includes Power-Flo Matrix 1 HP Pump with cord
  • Includes 2 - 1.5" x 6' hoses, hose adapters, clamps
  • Includes SP0723 deluxe drain valve
  • Optional SP1500UNPAK2 quick connect unions (sold separately)
