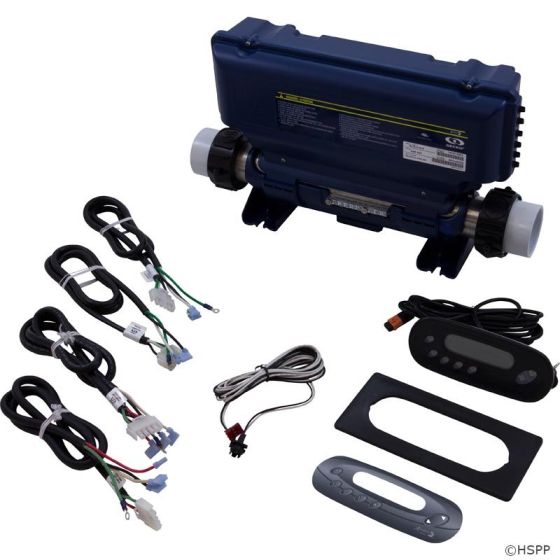

Gecko BDLYE5K450 Y-Series IN.YE-5 Spa Pack Control System

Gecko's new Y Series Spa Control System matches any spa available. If it's a spa, the Y Series will adapt to it. This durable, efficient new controller gives you everything you need in a spa control system while taking flexibility to a whole new level.

The Y Series will remain state-of-the-art for many years to come, it's an investment for today, and the future. From simple entry level hot tubs to complex swim spa systems, the Y Series meets all requirements. The Y Series provides easy access to the control board for all maintenance and replacement requirements. Keypad auto detection options are also featured. The Y Series will fit each and every spa produced today and well into the future.

More Information
Delivery Time Ships in 3-5 Business Days
Manufacturer Gecko
Technical Specs

Number of Appliances: 3
Appliance 1: 2 Speed Pump 115V/230V
Appliance 2: 2 Speed Pump 115V/230V
Appliance 3: Circulation Pump or Blower 115V/230V
Model: in.ye-5
Heater Type: Fixed - Bottom
Heater Wattage: 1.0kW/4.0kW
Circ Pump Ready: Yes 115V/230V
Supply Voltage: 115V/230V
Topside Included: in.k200
Auzillary Topside Ready: Yes
Wi-Fi Compatible: Yes
50/60 Hz: 60Hz
Cross Reference: SC-CF-P121-P211-O1-NE-LS-H4.0-WK2, 3-72-7011

Manufacturer Part # BDLYE5K450
Product Features
  • Gecko part numbers BDLYE5K450, 0610-300003, BDLYT7K6005OP
  • Supports topside, heater, and 5 configurable relays
  • Supports 2 Pumps and 1 Circulation Pump or Blower
  • Pump 3 or Blower can only be installed if Pump 2 is a single speed
  • Solid-state water flow detection: No pressure switch to adjust
  • IPX5 rated waterproof design
  • Connectors and power box are designed to be watertight
  • Preloaded configuration allows fast and easy installation
  • in.touch WiFi module compatible (requires separate WiFi module)
  • 115V/230V Convertible
  • Each output voltage can be configured to 115v or 230v
  • Standard 2" heater
  • in.k450 Topside Control included (in.k450-3op, BDLK4503OP)
  • Replaces S-Class and M-Class systems
  • 18 GPM Minimum for circulation pump
In stock
0 reviews
Special Price $409.99 was $524.99
You save: $115.00 (21%)
