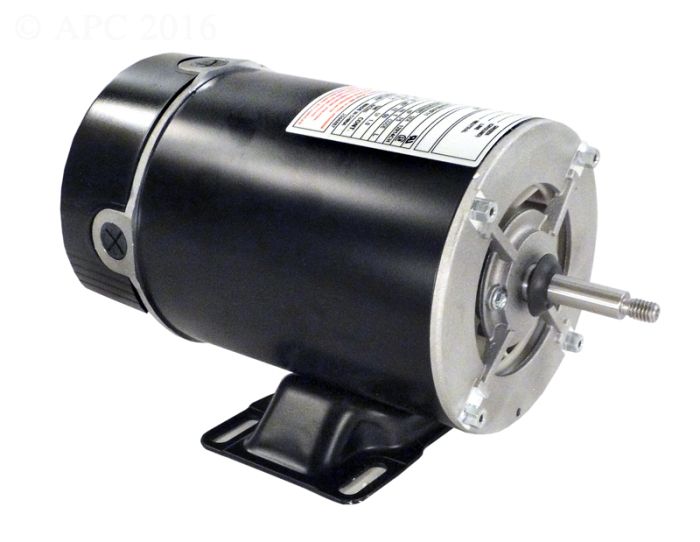

BN24V1 Pump Motor 48Y Frame 3/4 HP Thru-Bolt 115V

It is important to know that pool pump motors are not manufactured by the pump manufacturer, the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.

Cross References: JBT2072, C1453, 5KC39JN2895X, BN24, 9010-1189-R, BN-24SS, BN24SS, AGL75FL1

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

More Information
Delivery Time 2-5 Business Days
Manufacturer AO Smith
Technical Specs

Model: BN24V1
Style: Thru-Bolt
Shaft: 1/2" Diameter with 3/8" threads
Frame: 48Y NEMA
Horsepower: 3/4 HP
RPM: 3450
Voltage: 115V
Amperage: 9.8 amps
Warranty: 1 Year from date of install

SKU MGT-60-7024
Manufacturer Part # BN24V1
Product Features
  • 3/4 Horsepower
  • Service Factor: 1
  • Single Speed
  • 115 Volts
  • 9.8 amps
  • Mounting: Thru-Bolt
  • Frame: 48Y
  • Rigid Base Mount Welded to Motor Case
  • Automatic overload protection
  • Rotation: CWLE
