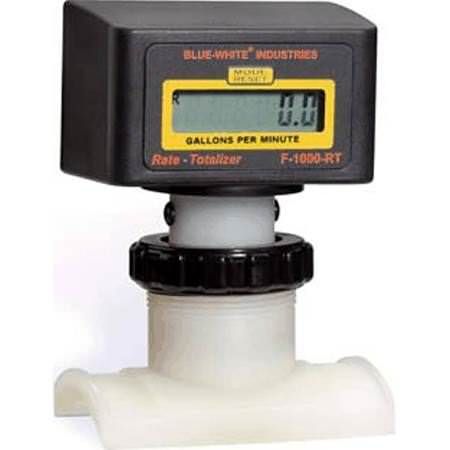

Blue White RB-200S4-GPM1 Digital Flowmeter - Saddlemount - 2 Inch - Sch 40

Blue White RB-200S4-GPM1 Saddlemount Digital Flowmeter for 2 Inch Schedule 40 PVC. The meter’s accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy will depend on the type of disturbance. The meter is designed to withstand outdoor conditions. A cool, dry location, where the unit can be easily serviced is recommended. The meter can be mounted on horizontal or vertical runs of pipe. Mounting at the vertical (twelve o'clock) position on horizontal pipe isrecommended. Mounting anywhere around the diameter of vertical pipe is acceptable, however, the pipe must be completely full of water at all times.

More Information
Delivery Time Ships in 3-5 Business Days
Manufacturer Blue-White Industries
Technical Specs

Max. Working Pressure: 300 psig (20 bar) @ 70 F (21 C)
Full scale accuracy: +/- 2%
Saddle material: PVDF
Sensor/Paddle/Axle material: PVDF
O-ring seals: Viton
Max. pressure drop: 0 psi (no significant pressure drop)
Approximate shipping weight. 2 lb (.91 kg)

SKU BLU-56-4092
Manufacturer Part # RB-200S4-GPM1
Product Features
  • Blue-White Industries part number RB-200S4-GPM1
  • F-1000 Series - Digital Paddlewheel Flowmeter
  • Includes Saddle and Tee Fittings
  • RB Series: RB = RATE ONLY
  • For 2" PVC Pipe - Schedule 40
  • Flow Range: 30 to 300 GPM
  • Saddlemount - Mounts to existing pipe
  • Mounting clamps and gasket included
  • Easy to read 6 digit LCD, up to 4 decimal positions
  • Tamper proof - Total reset function can be disabled
  • Battery operated (2 AAA batteries included)
  • Displays Rate of Flow in GPM
  • Display update time: Rate 1.5 sec
  • Factory calibrated – nothing to program
  • Weather resistant  ABS enclosure. NEMA 4X
  • LCD is not recommended for direct sunlight applications
