Product Overview
Quick Highlights
- Blue-Whte part number A1N10A-6T
- Fixed speed, dial knob control
- Self priming even against maximum pressure
- Bypass valves are not required, cannot vapor lock or lose prime
- Output volume is not affected by changes in back pressure
- Patented tube design installs easily and stays centered on rollers
- 2 Pump tubes included with each pump, extra tubing not required
- Easy to use dial knob output
- 20:1 turndown ratio
- Adjustable 60 second interval timer, 3-60 second adjustable on time per 60 second cycle
- Built-in tube failure detection system senses chemicals in pump head, shuts off pump, activates open collector output
- Durable thermoplastic chemical resistant housing
Product Description

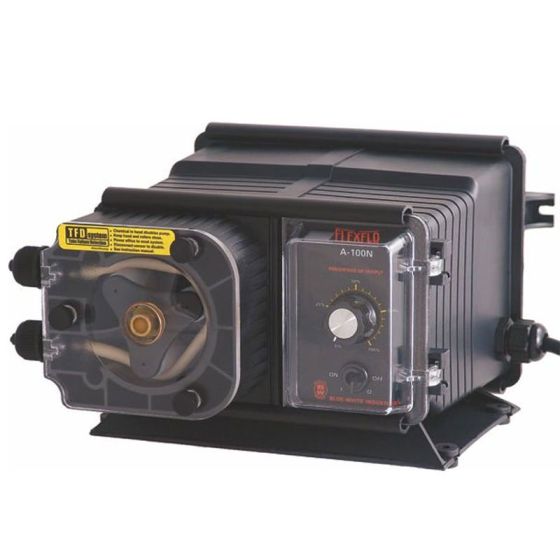

<p>Blue-White Industries A-100N Series Flexflo Peristaltic Metering Pump </p></p></p></p></p>
Technical Specs
Max Flow: 16 GPD
Max Viscosity: 5.0000 Centipoise
Turn Down Ratio: 20:1
Output Adjustment Range: 5-100%
Duty Cycle: Continuous
Tube Size: 1/4"
Power: 115 VAC 60 Hz
