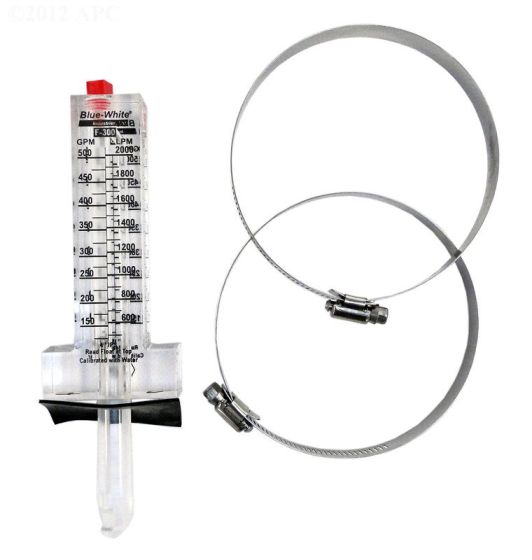

Blue-White 4 Inch PVC Flowmeter 75-420 GPM - F-30400P
The Blue-White Industries F-30400P Flowmeter for 4" PVC is for horizontal flow only and has a flow range of 125 to 500 gallons per minute. The Pilot tube (impact tube) design makes it easy to install the F-300 Series meters on existing pipe and it is acceptable for outdoor installations (direct sunlight is okay). Each flowmeter includes stainless steel clamps and corrosion resistant internal components.
Delivery Time | 2-5 Business Days |
---|---|
Manufacturer | Blue-White Industries |
Technical Specs | Meter Body: Cast Acrylic |
SKU | BLU-56-4039 |
Manufacturer Part # | F-30400P |
- Blue-White Industries part number F-30400P
- For horizontal flow only
- For 4" PVC Pipe
- Flow Range: 75 to 420 GPM (previously 125-500 GPM)
- Dual GPM/LPM scale printed on both sides of the meter
- Corrosion resistant 316SS or Teflon internal float materials
- One piece machined acrylic body
- Mounts to existing pipe - No unions or adapters required
- Mounting clamps and gasket included
- Must be mounted at the vertical (twelve o'clock) position
- Must be mounted on horizontal pipe only
- The pipe must be completely full of water at all times
- The meter can accurately measure flow from one direction only
