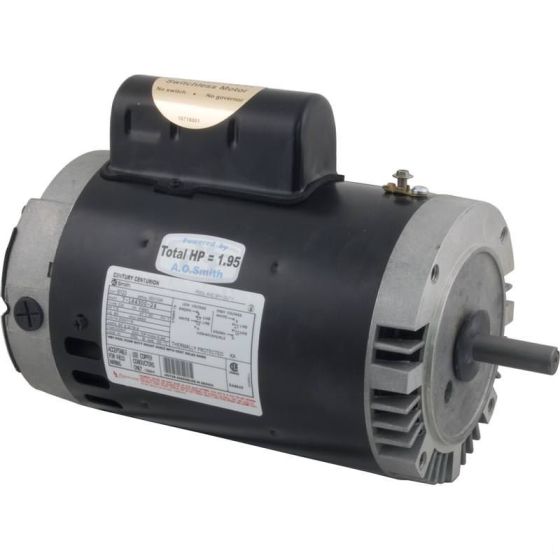

B123 Pool Pump Motor 56C Frame 1.5 HP Keyed Shaft 115V/230V

It is important to know that pool pump motors are not manufactured by the pump manufacturer, the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.

Cross Reference: 35-6403, 141930, 142459, 142775, 158127, 158961, 159985, 164124, 164128, 164300, 164430, 164440, 164444, 177471, 190000, B706, C1096, EB123, 1104375401, 13592, CK115, 7-164300-23, 8-164300-23, 7-164300-24, 5KCR49UN2087X, B795, SK1152, B796, 716430024, MGT605094

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

IMPORTANT NOTE: Pumps and replacement motors that are single speed and one (1) HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. We recommend either a dual speed or variable speed pump for California residents.

More Information
Delivery Time 2-5 Business Days
Manufacturer AO Smith
Technical Specs

Model: B123
Style: Keyed Shaft
 Frame: 56C NEMA
Horsepower: 1-1/2 HP
RPM: 3450
Voltage: 115V / 230V
Amperage: 19.4 / 9.7 amps
Warranty: 1 Year from date of install

Cross Reference: 35-6403, 141930, 142459, 142775, 158127, 158961, 159985, 164124, 164128, 164300, 164430, 164440, 164444, 177471, 190000, B706, C1096, EB123, 1104375401, 13592, CK115, 7-164300-23, 8-164300-23, 7-164300-24, 5KCR49UN2087X, B795, SK1152, B796, 716430024, MGT605094

SKU MGT-60-5094
Manufacturer Part # B123
Product Features
  • CAN NOT BE SOLD, SHIPPED TO OR INSTALLED IN THE STATE OF CALIFORNIA
  • 1.5 HP
  • 1.3 Service Factor
  • 115 / 230 Volt
  • 3450 RPM
  • 56C NEMA Frame
  • Keyed Shaft, C-Face Mounting
  • Amps: 19.4/9.7
  • A.O. Smith model B123
