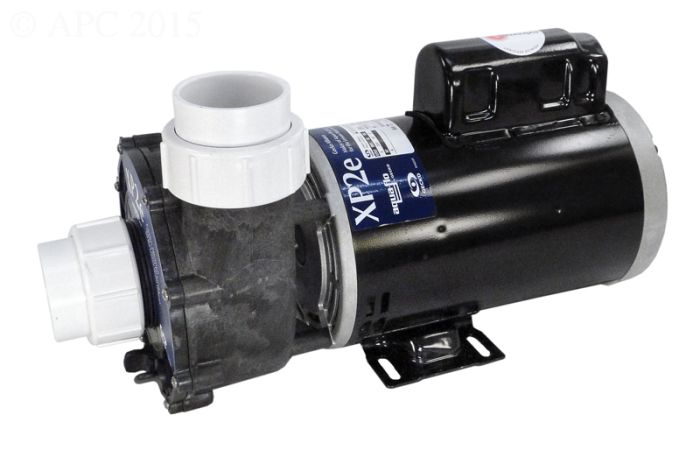

Aqua-Flo Flo-Master XP2e 4 HP 2 Speed 230V 05340009-5040

The energy consciousness of the Aqua-Flo 05340009-5040 XP2e pump allows spa manufacturers to offer the same and greater flow rates while improving the overall energy efficiency of the spa, reducing consumer operating costs. Certain applications of the XP2e pump may allow for the elimination of the diverter valve which improves user usefulness and lowers equipment costs.

Replaces the following pump models:
05234001-2
05342365-2
05242372-2
05820009-5040

More Information
Delivery Time 2-5 Business Days
Manufacturer Aqua-Flo
Technical Specs

Suction Connection Size: 2"
Connection Type: MBT
Discharge Connection Size: 2"
Connection Type: MBT
Operational Horsepower: 4 HP
Total Horsepower: 5 HP
Motor Speed: 2-Speed
Motor Frame: 56 Frame
Motor Amperage: 15.0A/4.5A
Motor Voltage: 230V
Model: XP2e
Impeller Number: 91695401

Product Documentation
SKU AQF-10-468
Manufacturer Part # 05340009-5040
Product Features
  • Aqua-Flo part number 05340009-5040
  • XP2e Series - Side Discharge
  • Fine-Tuned Impeller for maximum performance
  • Eliminates diverter valve in certain applications
  • Equipped with the highest quality Viton Seals
  • Same physical size as Aqua-Flo XP2
  • True Continuous Rated Horsepower
  • Operational Horsepower: 4 HP
  • Total Horsepower: 5 HP
  • Accepts 2" Plumbing
  • Inside Ports Measure 2-3/8"
  • Outside Threads Measure 3"
  • 230 Volt Motor
  • 2 Speed Motor
  • 56 Frame Motor
In stock
$499.99
