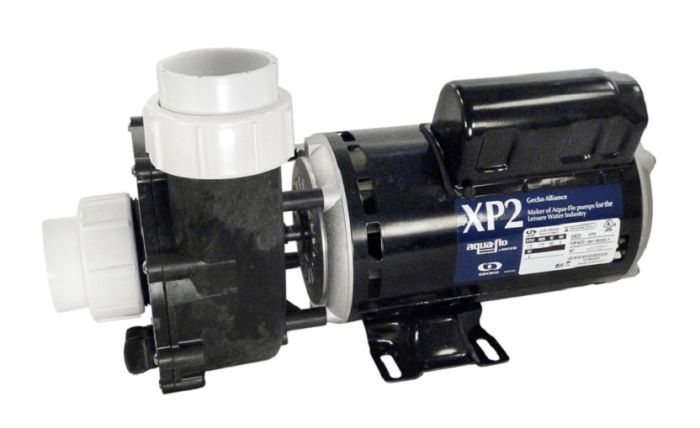

Aqua-Flo Flo-Master XP2 1.5 HP 2 Speed 115V 06115000-1040

The Aqua-Flo 06115000-1040 XP2 spa pumps easily outperform every other 48 frame pump on the market while utilizing the same space requirements. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, many-jetted spas requiring increased flow.

Replaces the following pump models:
06615456-2
06617763-2
06615686-2
06115
1-00-0133
06615890-1
06615686-2
06115484-2
06118371-2
06615763-1
06118437-2
06115511-2 Coleman Spa
06615686-2
06615607-1
06614510-2 1.75 HP
06115319-2
06610323-2
06610510
06610510-2
06115007-5
Freeflow 303007
Freeflow 77269

More Information
Delivery Time 2-5 Business Days
Manufacturer Aqua-Flo
Technical Specs

Suction Connection Size: 2"
Connection Type: MBT
Discharge Connection Size: 2"
Connection Type: MBT
Operational Horsepower: 1.5 HP
Total Horsepower: 2 HP
Motor Speed: 2-Speed
Motor Frame: 48 Frame
Motor Amperage: 15.0A/3.9A
Motor Voltage: 115V
Model: XP2
Impeller Number: 91694150

Product Documentation
SKU AQF-10-372
Manufacturer Part # 06115000-1040
Product Features
  • Aqua-Flo part number 06115000-1040
  • Flo-Master XP2 spa pump
  • Standard 48 frame motor
  • Maximum cost efficiency
  • High volumetric volute design
  • Whisper quiet operation
  • Fine tuned impeller for maximum efficiency
  • Flow rate 140 GPM
  • True, continuous rated horsepower of 1.5 (operational hp)
  • Total rated horsepower of 2.0
  • Accepts 2" Plumbing
  • Inside Ports Measure 2-3/8"
  • Outside Threads Measure 3"
  • 2 speeds
  • 115V
In stock
0 reviews
Special Price $379.99 was $489.99
You save: $110.00 (22%)
