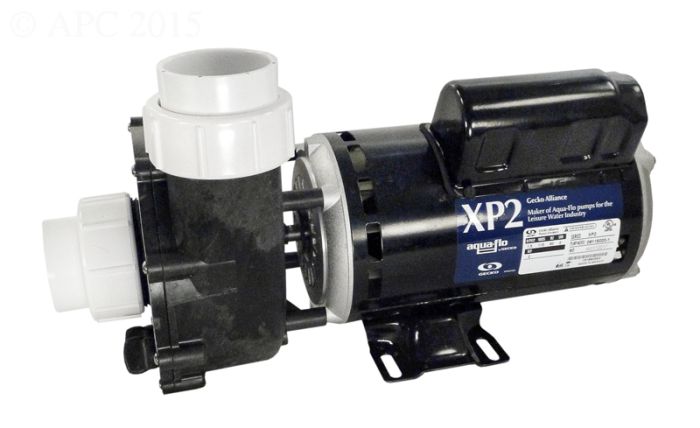

Aqua-Flo Flo-Master XP2 1.5 HP 2 Speed 230V 06115517-2040

The Aqua-Flo 06115517-2040 XP2 spa pumps easily outperform every other 48 frame pump on the market while utilizing the same space requirements. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, many-jetted spas requiring increased flow.

Replaces the following pump models:
06115
1-00-0131
06115005-1040
06115474-2
06115485-2
06615883-1
06615080-1 Baja Spa
06615485-2
06615398-2
06614000
06115006
06110005-1
06615685-2
05115006-2300, 05115006-2340
05015001-2040
05015005-1000
05015081-2300, 05015081-2340
05015558-1340
05015684-2300
05015959-1340
05015964-1301, 05015964-1340
05115001-2300, 05115001-2340
05115003-2340
05115459-2040, 05115459-2300
05115761-2000, 05115761-2040
05115792-2370
05115894-2300
05215001-7340

More Information
Delivery Time 2-5 Business Days
Manufacturer Aqua-Flo
Technical Specs

Suction Connection Size: 2"
Connection Type: MBT
Discharge Connection Size: 2"
Connection Type: MBT
Operational Horsepower: 1.5 HP
Total Horsepower: 2 HP
Motor Speed: 2-Speed
Motor Frame: 48 Frame
Motor Amperage: 8.0A/3.0A
Motor Voltage: 230V
Model: XP2
Impeller Number: 91694150

Product Documentation
SKU AQF-101-9964
Manufacturer Part # 06115517-2040
Product Features
  • Aqua-Flo part number 06115517-2040
  • Flo-Master XP2 spa pump
  • Standard 48 frame motor
  • Maximum cost efficiency
  • High volumetric volute design
  • Whisper quiet operation
  • Fine tuned impeller for maximum efficiency
  • Flow rate 140 GPM
  • True, continuous rated horsepower of 1.5 (operational hp)
  • Total rated horsepower of 2.0
  • Accepts 2" Plumbing
  • Inside Ports Measure 2-3/8"
  • Outside Threads Measure 3"
  • 2 speeds
  • 230V
In stock
$419.99
