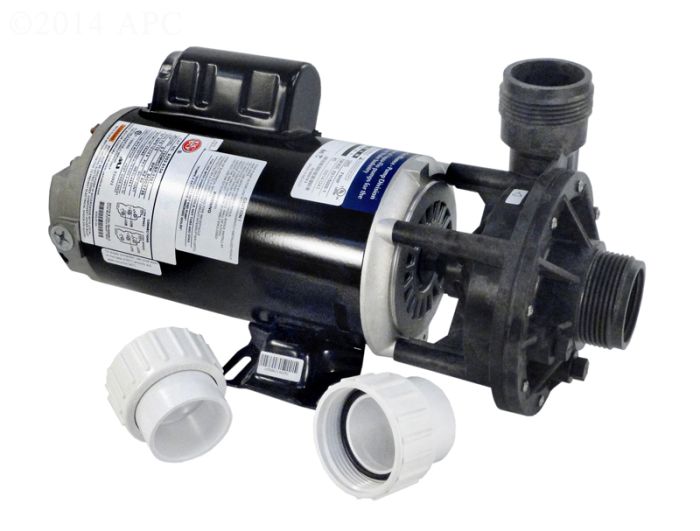

Aqua-Flo Flo-Master FMHP 2 HP 2 Speed 230V Spa Pump 02120000-1010

Aqua-Flo Flo-Master HP 02120000-1010 Pumps are perfect for spas and hot tubs with several jets since they often require a greater output. The outstanding flow rates of the Flo-Master allow the pump to run at a lower horsepower to do the same job of higher horsepower pumps. Using less horsepower means a lower operating cost and more money in your pocket!

The Aqua-Flo Flo-Master FMCP Pump has a center discharge on the top of the pump and the FMHP Pump has an side or offset discharge. Flo-Master Pumps come complete with quick release compression fittings which makes installation and maintenance very simple. The upgraded shaft seal and high performance impeller help to provide a high level of performance in any condition.

Replacese the following pump models:
X321300 (Master Spas)
03021682-2 (Thermo Spas)
03121762
02120211-2
02120633-2
02120510-2
02120250
02120080-1
03121762-2
03120839
03120512-2
02120411-2
03120031-1
03120080-1
03120467-2
02120250-1
1-00-0055
02120511-2
03120467-2
03120509-2
02120000-1
02120
02020
03120500-2
03020082-1
02020500-2
03020473-2
02120500-2
02220511-2

More Information
Delivery Time 2-5 Business Days
Manufacturer Aqua-Flo
Technical Specs

Suction Connection Size: 1-1/2"
Connection Type: FPT, MBT
Discharge Connection Size: 1-1/2"
Connection Type: FPT, MBT
Operational Horsepower: 2 HP
Total Horsepower: 3 HP
Motor Speed: 2-Speed
Motor Frame: 48 Frame
Motor Amperage: 8.4A/3.0A
Motor Voltage: 230V
Model: FMHP
Impeller Number: 91693700

Product Documentation
SKU AQF-10-400
Manufacturer Part # 02120000-1010
Product Features
  • AquaFlo part number FMHP 02120000-1010
  • FMHP - Side Discharge
  • Ideal for larger, multi-jet tubs
  • Quick release compression fittings
  • Easy installation or maintenance
  • Compact, unitized, single spring mechanical seal
  • Maximum durability and performance
  • High-performance impeller
  • Povides flow rates that exceed all tested competition
  • Drip proof, cool running seal eliminates seal burnout
  • Stainless steel fasteners
  • Unions are included
  • 1.5" Inlet and outlet plumbing connections
  • Inside Ports Measure 1-7/8"
  • Outside Threads Measure 2-7/16"
  • Unions are included
  • Operational Horsepower: 2 HP
  • Total Horsepower Rating: 3 HP
  • 230 Volt
  • 2 Speeds
