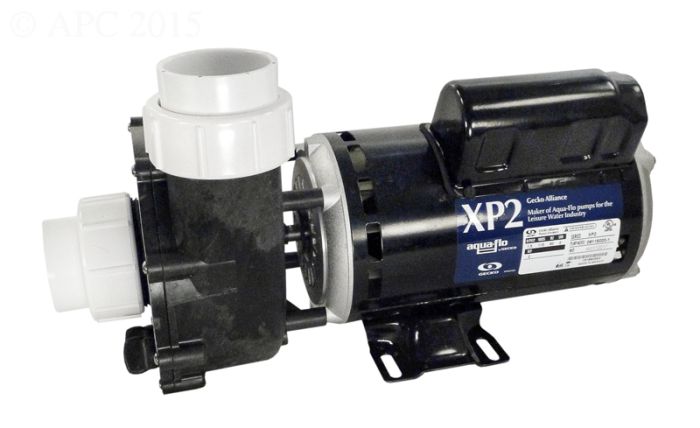

Aqua-Flo Flo-Master XP2 2.5 HP 2 Speed 230V 06125000-1040
The Aqua-Flo 06125000-1040 XP2 spa pumps easily outperform every other 48 frame pump on the market while utilizing the same space requirements. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, many-jetted spas requiring increased flow.
Replaces the following pump models:
06625312-2 Sunbelt Spas
06625395-2 Belize Spa Turn Wet End To 9'o clock
06625775-2 Dynasty
06125474-2
06625397
06625499-2 Dynasty Spas
06625792-2
06625705-2
06626315-2
06625449-2
06625685-2 Nordic Spa
06625485-2 Tuned To 3 o'clock position
06625489-2 4.8 SPL Garden Leisure Spas
06625395-2
06625894-1
06125275-1 Coleman Spas
06625451-2 Nordic Spas
06626462-2
06525082-1
06625509-2
06625080-1
06625770-2 4.8 SPL
06125395-2
06625887-1 Turned to 3:00
06525689-2
06626462-5
06625797-2
06625396-2 Master Spas
06625894-1 Emerald Spas
06125395-2040
06525690-2
06526397-2
06025
06625279-2
06125283-0
1-00-0093B
06525794-2
06525082-2
06025834-6
06525466-2 4.8 SPL
06626327-2
06625000-1
06625000-1
06625002-2
06625174-1
06625606-1
06625287-1
06625499-2
06625894-l
06625488-2
Delivery Time | 2-5 Business Days |
---|---|
Manufacturer | Aqua-Flo |
Technical Specs | Suction Connection Size: 2" |
Product Documentation | |
SKU | AQF-10-455 |
Manufacturer Part # | 06125000-1040 |
- Aqua-Flo part number 06125000-1040
- Flo-Master XP2 spa pump
- Standard 48 frame motors
- Maximum cost efficiency
- High volumetric volute design
- Whisper quiet operation
- Fine tuned impeller for maximum efficiency
- Flow rate 220 GPM
- True, continuous rated horsepower of 2.5
- Total rated horsepower of 4.0
- Accepts 2" Plumbing
- Inside Ports Measure 2-3/8"
- Outside Threads Measure 3"
- 2 speeds
- 230 Volt
