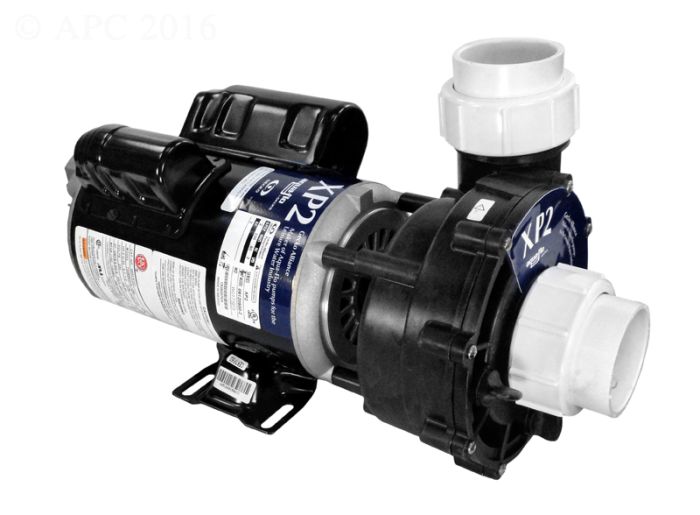

Aqua-Flo Flo-Master XP2 2 HP 2 Speed 230V 06120500-2040

The Aqua-Flo 06120500-2040 XP2 spa pumps easily outperform every other 48 frame pump on the market while utilizing the same space requirements. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, many-jetted spas requiring increased flow.

Replaces the following pump model:
06620876-1
06120453-2
06620321-2
06120812-1
06620768-2
06620786-2
06620399-2
06620342-2
06620003-2
06620489-2
06620390-2
06620345-1
06620768-2
06120681
06620608-1
06120070-1
06620311-2
06615978-2
06120
06620
T55CXBRF
06620764-1
06620489-2
06120500-2
06120000-1040
06620776-2
06620339-1
06120007-2
06620509-2
06620768-2
06620390-2
06620168-1
06620776-1
06620000-1
06120181-1
1-00-0144A
06620500-2
06120500-2040
06620031-1
06620485-2
06620454-2
06620831-1
06620514-2
06620001-2
06620608-1
06620342-2
06620776-2
06120608
06620459-2
06620788-2
07323001-2

More Information
Delivery Time 2-5 Business Days
Manufacturer Aqua-Flo
Technical Specs

Suction Connection Size: 2"
Connection Type: MBT
Discharge Connection Size: 2"
Connection Type: MBT
Operational Horsepower: 2 HP
Total Horsepower: 3 HP
Motor Speed: 2-Speed
Motor Frame: 48 Frame
Motor Amperage: 9.0A/3.2A
Motor Voltage: 230V
Model: XP2
Impeller Number: 91694200

Product Documentation
SKU AQF-10-466
Manufacturer Part # 06120500-2040
Product Features
  • Aqua-Flo part number 06120500-2040
  • Flo-Master XP2 spa pump
  • Standard 48 frame motor
  • Maximum cost efficiency
  • High volumetric volute design
  • Whisper quiet operation
  • Fine tuned impeller for maximum efficiency
  • Flow rate 140 GPM
  • True, continuous rated horsepower of 2.0
  • Total rated horsepower of 3.0
  • Accepts 2" Plumbing
  • Inside Ports Measure 2-3/8"
  • Outside Threads Measure 3"
  • 2 speeds
  • 230V
  • Capacitor styles vary on depending on the motor
