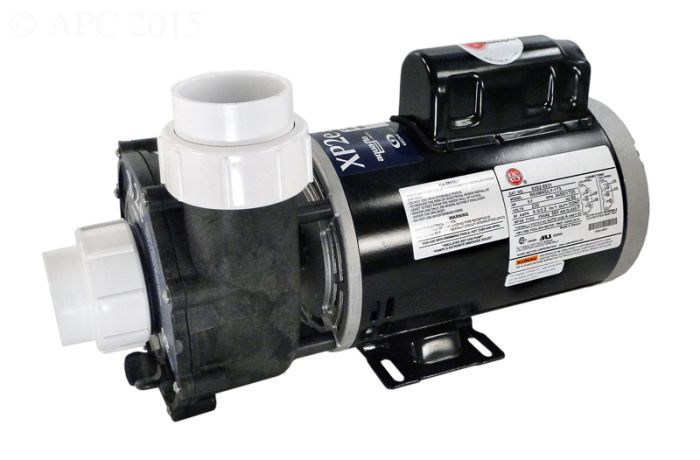

Aqua-Flo Flo-Master XP2e 2 HP 2 Speed 230V 05320761-2040
The energy consciousness of the Aqua-Flo 05320761-2040 XP2e pump allows spa manufacturers to offer the same and greater flow rates while improving the overall energy efficiency of the spa, reducing consumer operating costs. Certain applications of the XP2e pump may allow for the elimination of the diverter valve which improves user usefulness and lowers equipment costs.
Replaces the following pump models:
05320761-2000
05320761
05320004-2
07822776-2 XP2
05620007-2 Xp2e
05320306-1 XP2e
07323001-2
1-00-0019
05320-230
07322782-2
05520007-2
Delivery Time | 2-5 Business Days |
---|---|
Manufacturer | Aqua-Flo |
Technical Specs | Suction Connection Size: 2" |
Product Documentation | |
SKU | AQF-10-601 |
Manufacturer Part # | 05320761-2040 |
- Aqua-Flo part number 05320761-2040 / 05320761-2000
- XP2e Series - Side Discharge
- Fine-Tuned Impeller for maximum performance
- Eliminates diverter valve in certain applications
- Equipped with the highest quality Viton Seals
- Same physical size as Aqua-Flo XP2
- True Continuous Rated Horsepower
- Operational Horsepower: 2 HP
- Total Horsepower Rating: 3 HP
- Accepts 2" Plumbing
- Inside Ports Measure 2-3/8"
- Outside Threads Measure 3"
- 230 Volt Motor
- 2 Speed Motor
- 56 Frame Motor
