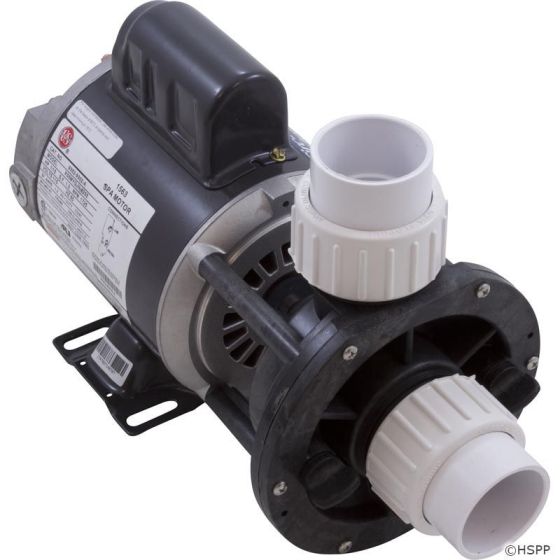

Aqua-Flo Circ-Master CMCP Spa Circulation Pump 1/15 HP 115V - 02593001-1010

The Aqua-Flo Circ-Master Spa Circulation Pump has the highest GPM in the industry and takes around the clock filtration to a new level. These pumps have an efficient flow rate of 80 Gallons per Minute and have a very low amperage draw resulting in lower electricity consumption levels.

Circ-Master CMCP Circulation Pumps pull away from the competition with the highest GPM rating of any recirculation pump in the spa industry. The higher GPM means a higher flow rate which allows the Circ-Master to operate a high-flow heating system with increased efficiency and up to four times the filtration of the competition. Circ-Master pumps will also operate standard or low-flo heating systems with increased reliability making this pump extremely versatile.

The Aqua-Flo Circ-Master CMCP Pump has a center discharge on the top of the pump. Circ-Master Pumps come complete with quick release compression fittings which makes installation and maintenance very simple. The upgraded carbon-graphite self-lubricating shaft seal is designed for continuous duty provides a high level of performance in any condition.

More Information
Delivery Time 2-5 Business Days
Manufacturer Aqua-Flo
Technical Specs

Voltage: 115V
Amperage: 1.3 Amps
Flow Rate: Up to 80 GPM
Motor Frame: 48
Horsepower: 1/15 HP
Intake / Outtake: 1.5" Plumbing Ports
Warranty: 2 Year manufacturer's warranty

Product Documentation
SKU 34-402-1144
Manufacturer Part # 02593001-1010
Product Features
  • 48 frame, continuous-duty construction with front and rear, permanently lubricated ball bearings for extended motor life.
  • Carbon-graphite self-lubricating seal designed for continuous duty operation.
  • Quick release compression fittings allow for easy installation or maintenance.
  • Circ-Master CMCP Series Spa Circulation Pump
  • AquaFlo part numbers 02593001-1010 / 02593000-2010 / 02910684-2
  • Very low energy consumption - approximately 1.3 Amps
  • Higher flow rate than most circulation pumps - up to 80 Gallons per Minute
  • Single Speed
  • Center Discharge
  • Includes Unions
  • 1/15 Horsepower
  • 115 Volt
  • Cross Reference: 02593003-3
