B127 Pool Pump Motor 56J Frame 3/4 HP C-Face 115/230V

Availability: In Stock

Regular Price: $229.99

Sale Price $169.99

You Save: $60.00  (26%)

Quick Overview

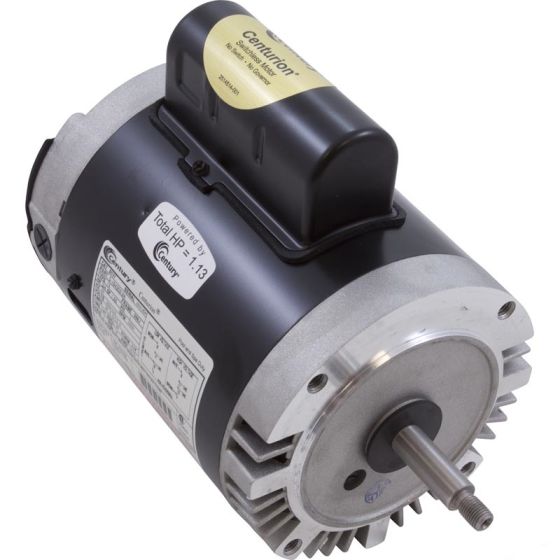

The AO Smith B127 Pool Pump Motor is a C-Face Mount style motor with a 56J Frame and is a Full Rated 115/230 Volt motor. C-Frame motors have a round "face" where the motor mounts to the pump with 4 bolt holes to attach the pump and a threaded shaft.

C-Face 56J Frame Motors are most commonly used on Hayward Super II, Hayward Super Pump, Hayward Northstar, Hayward Max-Flo, Hayward 5060 Booster Pumps, Jacuzzi Magnum, Jandy Plus HP, Jandy Stealth and Jandy HHP pumps.


It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.

  • 3/4 Horsepower
  • Full Rated
  • Service Factor: 1.50
  • 56J Frame
  • Threaded Shaft
  • 115/230 Volt
  • 12.0/6.0 amps
  • Capacitor Start
  • Automatic Overload Protection
  • Non-Reversible CCW
  • Stainless Steel Shaft
  • Can replace Hayward AX5060M Booster Pump Motor


Cross Reference: SPX1607Z1BE, 1607Z-1-B4C, 1607Z-1-BC, SP-1607-Z1-B4C, SP-1607-Z1-BC, A0564200, C48K2N117A3, ST1072, 141968, 150235, 152559, 152565, 152617, 152769, 158131, 158534, 158575, 158595, 159811, 159982, 164276, 164302, 164520, 164564, 164582, 164808, 165111, 165384, 168097, 173763, 177018, 177024, 177072, 177169, 177459, 177499, 177842, 193631, B626, C1099, EB127, 1104355400, 15443, CT107, 7-164302-24, 10-177018-24, 10-164302-22, 8-177499-20, 8-164276-20, 8-164302-20, 8-164520-20, 8-168097-20, 8-173763-20, 8-164302-24, 7-193631-24, 8-164302-22, 8-168097-21, 8-173763-21, 5KC33MN2514X, 35B1187, MGT605098, 816430224, 16430200

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

Additional Information
Delivery Time 2-5 Business Days
Manufacturer AO Smith
Technical Specs

Model: B127
Horsepower: 3/4 HP
Service Factor: 1.50
Voltage: 115/230V
Amps: 12.0/6.0
Frame: 56J
RPM: 3450
Shaft: 5/8" diameter threaded shaft
Max Temp: 50 Degrees C ambient

Works with the following pumps:
Hayward Super Pump
Hayward Super II
Hayward Max-Flo
Hayward NorthStar
Jandy Stealth
Jandy Plus HP
Jandy HHP
Jacuzzi Magnum

SKU MGT-60-5098
Manufacturer Part # B127
