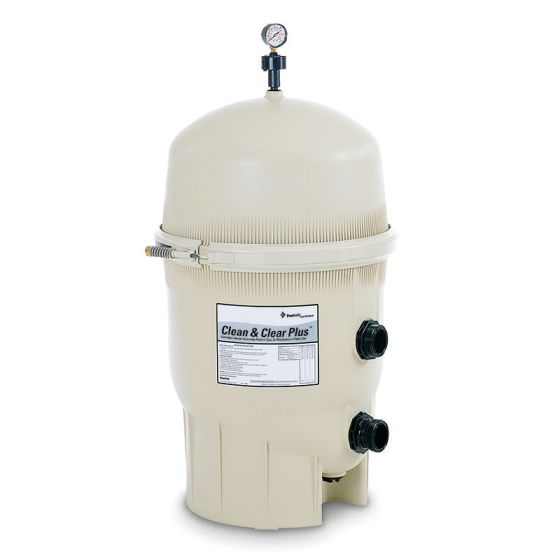

Pentair Clean and Clear Plus 520 Cartridge Filter 160332

Availability: In Stock

Regular Price: $1,199.99

Sale Price $1,023.99

You Save: $176.00  (14%)

Quick Overview

The Pentair 160332 Clean and Clear Plus 520 Cartridge Filter combines top-end filter performance with low maintenance. The Clean & Clear Plus uses a four-cartridge design providing maximum filter surface area to capture more dirt and extend time between cleanings. Cleaning is super simple, just open the top, remove the cartridges, hose them off and the your filter is ready to go back to work.

Pentair Clean & Clear Plus Brochure

Pentair Clean & Clear Plus Filter Parts

Shop All Pentair Clean & Clear Plus Filters


This dependable design uses special filter elements to strip tiny particles as small as 30 microns from your pool water. (The average grain of beach sand is 1000 microns!) Pentair has also maximized their cartridge surface consistency to block and trap the maximum amount of solids while using the most durable materials to extend the cartridge life. Clean & Clear Plus filters deliver commercial-grade performance that keeps pools clean and sparkling.

Clean & Clear Plus cartridge filters contain four polyester cartridges that hold enormous amounts of dirt and are still easy to clean. The fiberglass-reinforced tank halves are secured with an innovative clamp ring, simply loosen the ring and remove the top half for quick and easy cartridge access and rinsing. Its filter elements and excellent hydraulic design ensures your pool water will have a jewel-like brilliance while requiring less maintenance than its competitors.

  • Superior Strength
  • Coreless cartridge makes cleaning easy
  • Large filter area for increased dirt capacity
  • 1-1/2 inch, 100% drain clean-out port
  • Continuous High Flow internal air relief
  • Base and plumbing kits available
  • Injection molded tank
  • Balanced hydraulic flow
  • Tension control clamp
  • 100% factory tested
  • Black bulkhead unions
  • High Flow manual air relief valve
  • 2" Plumbing
  • One year warranty
  • Includes 4 filter cartridge elements
Additional Information
Delivery Time LTL Freight 2-7 Business Days
Manufacturer Pentair
Technical Specs

Owners Manual

  • Effective Filtration Area: 520 square feet
  • Flow Rate: 150 GPM (Gallons Per Minute)
  • Turnover: 8hrs= 72,000 Gallons, 10hrs= 90,000 Gallons, 12hrs= 108,000 Gallons
  • Vertical Clearance Required: 74" inches
SKU PAC-05-507
Manufacturer Part # 160332
