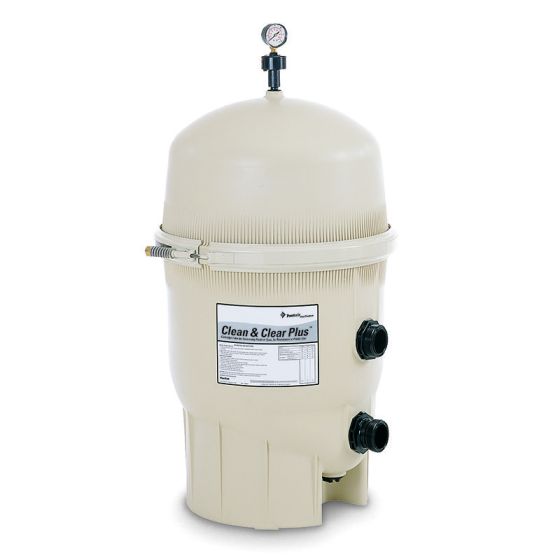

Pentair Clean and Clear Plus 420 Cartridge Filter 160301

Availability: In Stock

Regular Price: $949.99

Sale Price $824.99

You Save: $125.00  (13%)

Quick Overview

The Pentair Clean and Clear Plus 420 Cartridge Filter combines top-end filter performance with low maintenance. This dependable design uses special filter elements to strip tiny particles as small as 30 microns from your pool water. Cleaning is super simple, just open the top, remove the cartridges, hose them off and the your filter is ready to go back to work.

Pentair Clean & Clear Plus Brochure

Pentair Clean & Clear Plus Filter Parts

Shop All Pentair Clean & Clear Plus Filters


The Clean & Clear Plus uses a four-cartridge design providing maximum filter surface area to capture more dirt and extend time between cleanings. Pentair has also maximized their cartridge surface consistency to block and trap the maximum amount of solids while using the most durable materials to extend the cartridge life. Clean & Clear Plus filters deliver commercial-grade performance that keeps pools clean and sparkling.

Clean & Clear Plus cartridge filters contain four polyester cartridges that hold enormous amounts of dirt and are still easy to clean. The fiberglass-reinforced tank halves are secured with an innovative clamp ring, simply loosen the ring and remove the top half for quick and easy cartridge access and rinsing. Its filter elements and excellent hydraulic design ensures your pool water will have a jewel-like brilliance while requiring less maintenance than its competitors.

  • Superior Strength
  • Includes 4 cartridge elements
  • Large filter area for increased dirt capacity
  • 1-1/2 inch, 100% drain clean-out port
  • Continuous High Flow internal air relief
  • Injection molded tank
  • Balanced hydraulic flow
  • Tension control clamp
  • 100% factory tested
  • High Flow manual air relief valve
  • Max. Pool Size (gallons) 72,000
  • 2" Plumbing
  • One year warranty
Additional Information
Delivery Time LTL Freight 2-7 Business Days
Manufacturer Pentair
Technical Specs

Owners Manual

  • Effective Filtration Area: 420 Square Feet
  • Flow Rate: 150 GPM (Gallons Per Minute)
  • Turnover Capacity: 8hrs=72,000 Gallons, 10hrs=90,000 Gallons, 12hrs=108,000 Gallons
  • Vertical Clearance: 68" inches *required clearance to remove filter elements
  • Filter Diameter: 21.5" inches
  • Plumbing 2" inches
SKU PAC-05-506
Manufacturer Part # 160301
