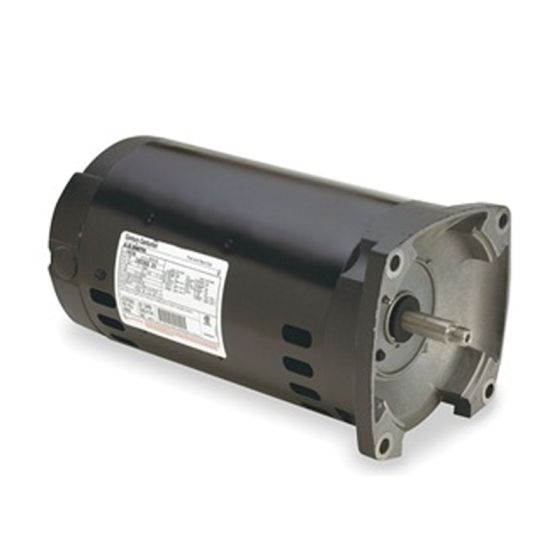

H755 Pool Pump Motor 56Y Frame 3 HP Square Flange 3-Phase 208-230/460V

Availability: In Stock Ships Today

Regular Price: $474.99

Sale Price $439.99

You Save: $35.00  (7%)

Quick Overview

The AO Smith H755 Pool Pump Motor is a Square Flange style motor with a 56Y Frame and is a 3-Phase 208-230/460 Volt 3 Horsepower Motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.

Square Flange motors are most commonly used on Pentair Challenger, WhisperFlo, SuperFlo and Pinnacle pumps, Hayward TriStar and Max-Flo II pumps, most Jandy pumps and Sta-Rite Max-E-Pro, Max-E-Glas/Max-E-Glas II, Dura-Glas/Dura-Glas II, Dyna-Pro, Dyna-Glas and Dyna Max pumps. 3-Phase Motors are commonly used on commercial swimming pool and water feature pumps.

Details

It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.

  • 3 HP
  • 3-Phase Motor
  • 208-230/460 Volts
  • 9.0-8.6/4.3 amps
  • Service Factor: 1.15
  • 56Y Frame
  • 56Y motor body diameter is 1/2" larger than 48Y
  • Square Flange (Face)
  • 5/8" Threaded Shaft
  • All copper windings
  • Automatic thermal protection
  • Stainless steel threaded shaft
  • Double sealed ball bearings



Cross Reference: AP100HL, 35-5398, 35-5527, H755, Q3302, 165440, 165883, 168460, 12115, 1303062112, SQ330, 7-165440-05, 8-168460-05, EH755, K8017, 8165447005, 8-1654470-05



When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.´╗┐

Additional Information
Delivery Time 2-5 Business Days
Manufacturer AO Smith
Technical Specs

Horsepower: 3 HP
Service Factor: 1.15
Voltage: 3-Phase - 208/230/460 Volt
Amperage: 9.0-8.6/4.3
RPM: Single speed - 2350 to 3600 RPM
Rotation: CW/CCW
Max Temp: 50 Degrees Celsius ambient´╗┐

Full Cross Reference: AP100HL, 35-5398, 35-5527, H755, Q3302, 165440, 165883, 168460, 12115, 1303062112, SQ330, 7-165440-05, 8-168460-05, EH755, K8017, 8165447005, 8-1654470-05

SKU MGT-60-5200
Manufacturer Part # H755
