B2844 Pool Pump Motor 56Y Frame 3 HP Square Flange Energy Efficient 230V

Availability: In Stock

Regular Price: $424.99

Sale Price $369.94

You Save: $55.05  (12%)

Quick Overview

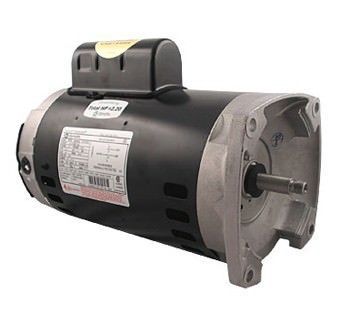

The AO Smith B2844 Pool Pump Motor is a Square Flange style motor with a 56Y Frame and is an Energy Efficient 3 Horsepower Motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.

Square Flange motors are most commonly used on Pentair Challenger, WhisperFlo, SuperFlo and Pinnacle pumps, Hayward TriStar and Max-Flo II pumps, most Jandy pumps and Sta-Rite Max-E-Pro, Max-E-Glas/Max-E-Glas II, Dura-Glas/Dura-Glas II, Dyna-Pro, Dyna-Glas and Dyna Max pumps.


It is important to know that pool pump motors are not manufactured by the pump manufacturer; the motor will usually be manufactured by AO Smith, Magnetek or Centurion. Your pump's motor should have a label or faceplate on it which includes the information you need to replace your pump motor. The most important categories to note will be the horsepower (hp), motor frame (fr), voltage and service factor (sf). Some labels will provide you with a model number and it will usually be listed as CR or CAT.

  • 3 HP - Full Rated
  • Energy Efficient
  • Service Factor: 1.15
  • 56Y Frame
  • 56Y motor body diameter is 1/2" larger than 48Y
  • 230V
  • 13.6 amps
  • Square Flange (Face)
  • Threaded Shaft
  • Capacitor start, capacitor run
  • All copper windings
  • Automatic thermal protection
  • Stainless steel threaded shaft
  • Sealed ball bearings


Cross Reference: 16520200, B2844, B844, EB844, 1-86238-01, 716520207, 18623801, 35-5395, 355395, C1449, SQ1302, 16362, 7-165202-07, 177453-03

When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.

Additional Information
Delivery Time 2-5 Business Days
Manufacturer AO Smith
Technical Specs

Horsepower: 3 HP
Service Factor: 1.15
Voltage: 230 Volt
Amperage: 13.6
RPM: Single speed - 3450 RPM
Rotation: CCW at Pump End
Max Temp: 50 Degrees Celsius ambient´╗┐

Works with the following pumps:
Pentair WhisperFlo
Pentair Challenger
Pentair SuperFlo
Pentair Pinnacle
Hayward TriStar
Hayward Max-Flo II
Sta-Rite Max-E-Pro
Sta-Rite Max-E-Glas / Max-E-Glas II
Sta-Rite Dura-Glas / Dura-Glas II
Sta-Rite Dyna-Glas
Sta-Rite Dyna-Max
Sta-Rite Dyna-Pro
Anthony AR2´╗┐

SKU MGT-60-5121
Manufacturer Part # B2844
