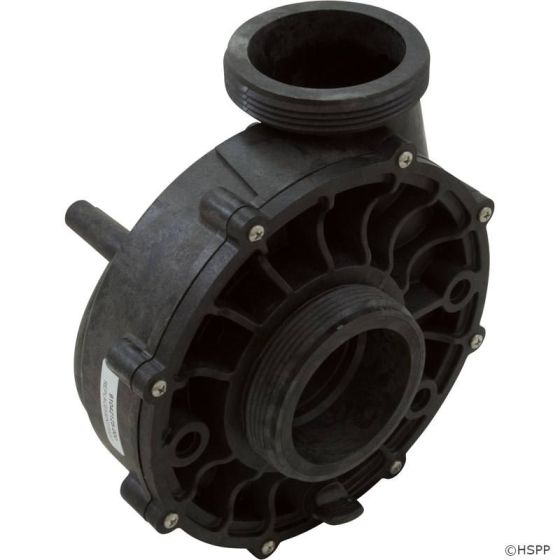

Aqua-Flo XP3 48/56 Frame 2.5 HP 2.5" Wet End - 91042125-000

More Information
Delivery Time 2-5 Business Days
Manufacturer Aqua-Flo
Technical Specs
Pump to Motor Foot Types 3
Motor Frame 48 Frame Thru-Bolt, 56 Frame Thru-Bolt
Drain Plug Location 3,4,6,9 o`clock
Suction Auxillary Port None
Suction Style Center
Suction Connection (Physical Dimension) 3-11/16" od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2-1/2"
Discharge Auxilary Port None
Discharge Style Side
Discharge Connection (Physical Dimension) 3-11/16" od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2-1/2"
Horsepower 2.5hp
Manufacturer AquaFlo/Gecko
Pump Model Flo-Master XP3
Manufacturer Impeller Number 91698250
Volute Fastening Type 8 Screws
Volute/Sealplate Number 92770735


SKU AQF-10-501
Manufacturer Part # 91042125-000
Product Features
  • Aqua-Flo part number 91042125 (91042125-000)
  • Complete wet end
  • Fits Flo-Master XP3 Series spa pumps
  • Fits 2.5 HP XP3 pumps w/ 48 or 56 motor frames
  • Operational Horsepower: 2.5 HP
  • Total Horsepower: 4 HP
  • 2.5" Plumbing ports
  • 48/56 Frame
  • Wet end may be rotated 90 degrees to change the discharge position
  • Connection Type: Male Buttress Thread (mbt)
  • Motor and unions sold separately
  • Factory original Aqua-Flo replacement part
